Produkt
IPF
OGSI0326
Poproś o ofertę

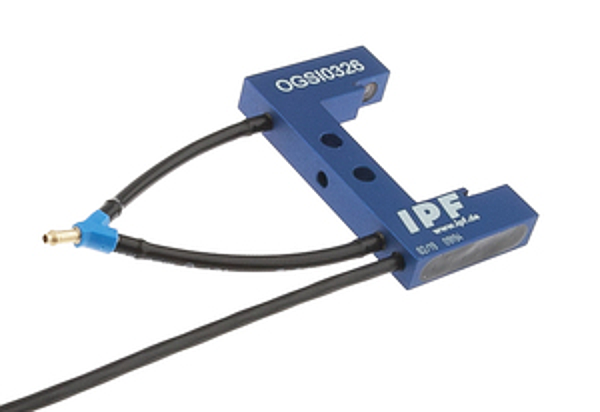

Prawa autorskie do obrazu: IPF
IPF OGSI0326
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Cable length: | 1m |
| Ambient temperature: | -20 - 80°C |
| Material of cable sheath: | Other |
| Sensor width: | 8mm |
| Sensor length: | 19.5mm |
| Fork width: | 30mm |
| Aperture diameter: | 1.2mm |
| Housing material: | Aluminum |
| Material of optical surface: | Glass |
| Degree of protection (IP): | IP67 |
| Sensor height: | 54mm |
| Fork depth: | 15mm |
| Fork light barrier design: | Furcate |
| Voltage type: | DC |
| Equipment protection class: | Protection class 3 |
| Reverse polarity protection: | yes |
| Type of the forked light barrier: | Increased soiling reserve |
| Type of electrical connection: | Cable |
| Short-circuit protection: | yes |
| Connection to amplifier: | yes |
| Repeatability +/-: | 10µm |
| Laser protection class: | None |
| Min. object size: | 0.01mm |
| Light beam form: | Point |
| Light color of the transmitter diode: | Red light |
| Light spot: | 1.2mm² |
| Resolution: | 10µm |
| Light wavelength of the transmitter diode: | 660nm |
| Pulsed light source: | yes |
| eClass 7.0: | 27270909 |
| eClass 7.1: | 27270909 |
| eClass 8.0: | 27270909 |
| eClass 9.0: | 27270909 |
| eClass 9.1: | 27270909 |
| ETIM-6.0: | EC002720 |
| ETIM-7.0: | EC002720 |
| IPF Product Group: | 705 |
| shipping weight: | 0.05kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
| Zolltarifnummer: | 85365019 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
