Produkt
IPF
KV750450
Poproś o ofertę
Prawa autorskie do obrazu: IPF

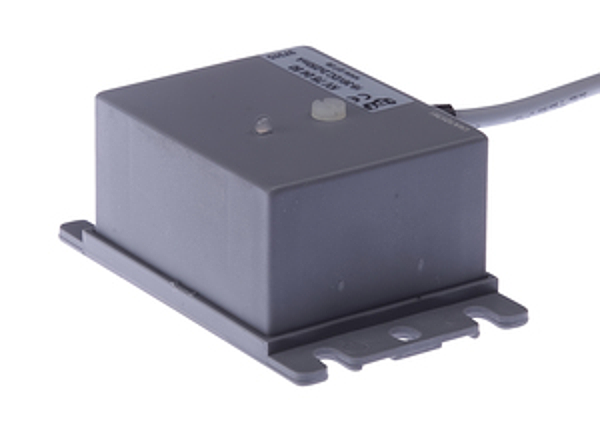

IPF KV750450
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Mounting method: | Floor fastening |
| Height: | 30mm |
| Design: | Cuboid |
| Housing material: | Polyamide |
| Material of cable sheath: | PUR (Polyurethane) |
| Device design: | Field device |
| Width: | 75mm |
| Cable length: | 2m |
| Length: | 47mm |
| Number of cores: | 4 |
| Degree of protection (IP): | IP65 |
| Voltage type: | DC |
| Switching voltage: | 30V |
| Type of electrical connection: | Cable |
| Number of output circuits, transistor pnp: | 2 |
| Short-circuit protection: | yes |
| Voltage drop: | 2.5V |
| Amplifier for capacitive sensors: | yes |
| Type of voltage supply: | Active |
| Switching frequency: | 50Hz |
| Rated switching current: | 0.25A |
| Rated supply voltage at DC: | 18 - 36V |
| Malfunction message output: | no |
| No-load current: | 50mA |
| Operating temperature: | -25 - 55°C |
| eClass 7.0: | 27210121 |
| eClass 7.1: | 27210121 |
| eClass 8.0: | 27210121 |
| eClass 9.0: | 27210121 |
| eClass 9.1: | 27210121 |
| ETIM-6.0: | EC001485 |
| ETIM-7.0: | EC001485 |
| IPF Product Group: | 242 |
| shipping weight: | 0.17kg |
| packaging dimensions: | 76.0mm x 50mm x 121.0mm |
| customs tariff number: | 85365019 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
