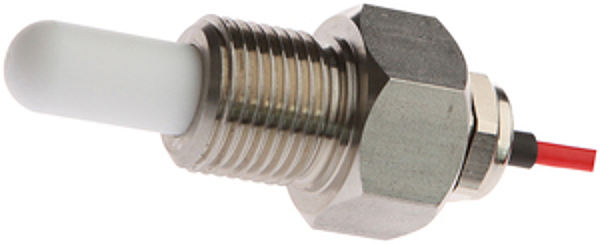

FK90C894
Thread length: | 20mm |
Pressure resistance: | 10bar |
Ambient temperature: | -35 - 180°C |
Material of cable sheath: | PTFE |
Type of process connection: | G1/2 inch |
Medium temperature: | -35 - 180°C |
Probe length: | 24mm |
Cable length: | 2m |
Housing material: | Stainless steel 1.4571 |
Thread size, inches: | 1/2 inch |
Degree of protection (IP): | IP68 |
Sensor length: | 59mm |
Sensing element material: | PTFE |
Probe diameter: | 12mm |
Type of electrical connection: | Lemo |
Type of switching function: | Amplifier |
Type of switching output: | Amplifier |
Physical measurement principle: | Capacitive |
eClass 7.0: | 27371813 |
eClass 7.1: | 27371813 |
eClass 8.0: | 27371813 |
eClass 9.0: | 27371813 |
eClass 9.1: | 27371813 |
ETIM-6.0: | EC001447 |
ETIM-7.0: | EC001447 |
IPF Product Group: | 700 |
shipping weight: | 0.22kg |
packaging dimensions: | 124.0mm x 35.0mm x 149.0mm |
customs tariff number: | 85365019 |
ECCN: | |
Kraj pochodzenia: | |
EAN: | |
Waga: | 0,00 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
