Eaton 029763

K95/5

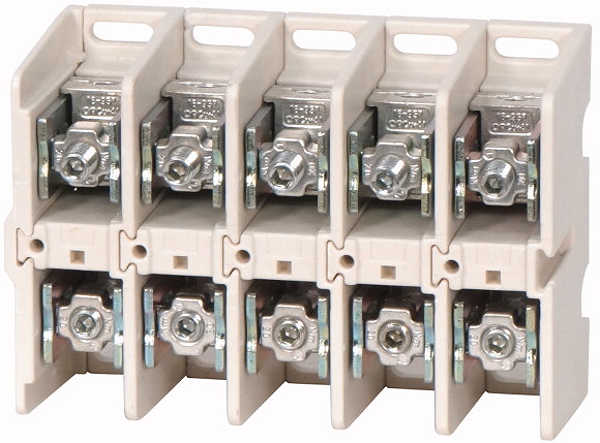

Connection terminal, 160A, 5p, flat/round

Opis

K connecting terminals, for AL and CU, one side round and the other side round, rated operational current Ie=160 A, number pole=5, terminal capacities: Copper round cable stranded, sectoral stranded, round cable solid, sectoral solid and aluminium round conductor solid, sectoral solid=1x16-95mm² or aluminum sectoral solid=1x35-70mm². Other side: copper band 3x9x0.8 up to 6x9x0.8 or Cu bar=18x4mm, notes: Conversion kits for strip terminal in cable connection available separately, terminal covers available separately
