Produkt
Di-soric
208217
BE-A100-F5-K
Poproś o ofertę
Prawa autorskie do obrazu: Di-soric
Di-soric 208217
BE-A100-F5-K

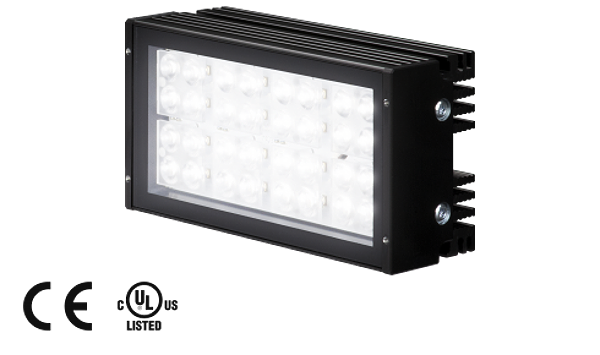

Barlight
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
High excess current factor. Flash mode operation for „freezed images“ and inspection of fast moving objects at extremely high light intensity. Long-life thanks to intelligent thermal management. Homogenous luminous field. High protection class. Robust metal casing. Universal mounting possibility. Scratch-proof protection window. Mounts und Optics available as an option
Pliki do pobrania
Parametry techniczne
| Pulse power consumption (max): | 250 W |
| Pulse overload factor: | 8 |
| Pulse current capacity: | 8000 mA |
| Design: | Barlight |
| Illuminated area: | 46 x 96 mm |
| Characteristics: | Flashable by means of flash controller |
| Light colour: | White, 6000 K |
| Emission angle FWHM: | 30° |
| Illumination intensity: | 289 klx (0.1 m / 100%) 880 klx (0.1 m / 400%) 1.200 klx (0.1 m / 800%) 148 klx (0.2 m / 100%) 430 klx (0.2 m / 400%) 640 klx (0.2 m / 800%) 35.0 klx (0.5 m / 100%) 92.0 klx (0.5 m / 400%) 150 klx (0.5 m / 800%) 9.5 klx (1.0 m / 100%) 21.0 klx (1.0 m / 400%) 44.0 klx (1.0 m / 800%) |
| Service voltage: | No constant voltage! |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Ambient temperature, operation: | 0 … +40 °C |
| Protection class: | IP 67 |
| Risk group (DIN EN 62471): | Risk group 2 |
| Casing material: | Aluminium black anodized |
| Material: | PUR (Cable) PMMA, hardcoated (Protection optics) |
| Connection: | Cable, 2,5 m, flying leads, Use only with flash equipment! |
| Weight: | 450 g |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,63 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
