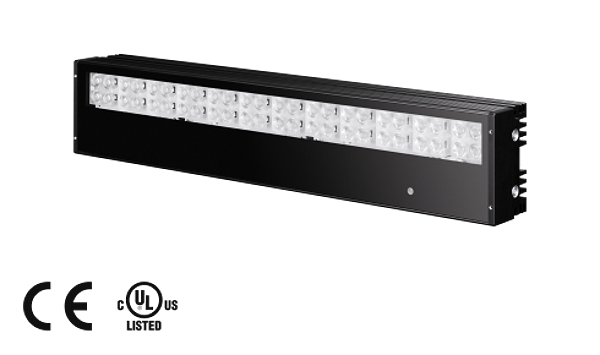

Di-soric 208178
BEK-A300-G0T-K-BS
Barlight
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Extremely high light intensity thanks to most modern high power LEDs. Integrated single-line power control with high efficiency. Intelligent temperature control with switch-off automatic. Homogeneous light field thanks to special LED-optics. High protection class. Separate entries for trigger signal and trigger polarity. Robust metal casing. Universal mounting possibility. Scratch-proof protection window. Mounts und Optics available as an option
Pliki do pobrania
Parametry techniczne
| Design: | Barlight |
| Illuminated area: | 23 x 296 mm |
| Characteristics: | Internal control of power output |
| Light colour: | Infrared, 850 nm |
| Emission angle FWHM: | 30° |
| Illumination intensity: | 37000 µW/cm² (0.1 m), 19000 µW/cm² (0.2 m), 7000 µW/cm² (0.5 m) |
| Service voltage: | 18 ... 30 V DC (Supply Class 2) |
| No-load current: | 1.400 mA, (24 V DC) |
| Trigger input low level: | 0 … < 2,8 V |
| Trigger input high level: | > 3,3 … 30 V |
| Power: | 32,5 W (24 V DC) |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Inverse polarity protection: | Yes |
| Display: | LED: green - Operation |
| Ambient temperature, operation: | 0 … +40 °C |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Risk group (DIN EN 62471): | Risk group 1 |
| Casing material: | Aluminium black anodized |
| Material: | PMMA, hardcoated (protective glass) |
| Connection: | Cable, 0,3 m, + connector M12, 4-poled |
| Weight: | 1050 g |
| Connecting cable: | VK ... |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 1,34 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
