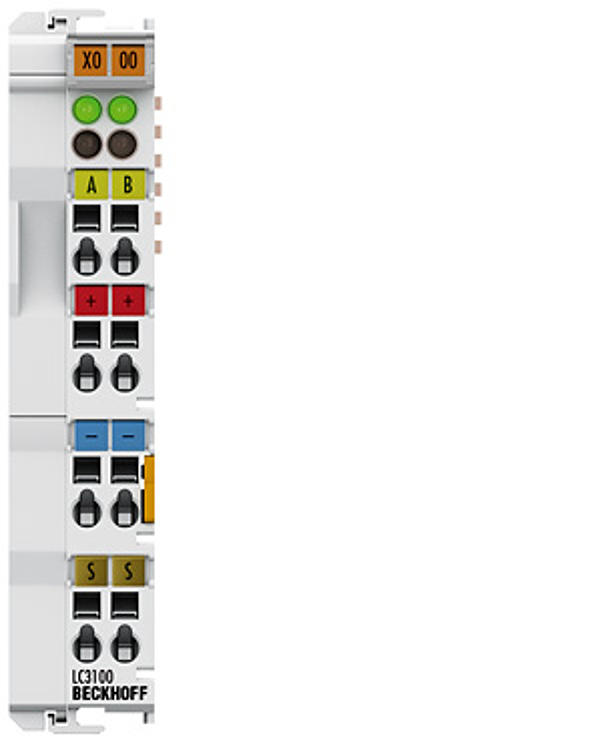

Article image LC3100

Beckhoff LC3100

LC3100 | PROFIBUS “Low Cost” Bus Coupler

Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"

Opis

The LC3100 “Low Cost” Bus Coupler is marked by a smaller design and a more economical connection method. Its functions correspond to those of the PROFIBUS BK3110 Bus Coupler in relation to operation with Bus Terminals and to the fieldbus properties. Up to 64 digital input/output terminals can be connected. The firmware can be updated via the configuration interface.

Parametry techniczne

Number of I/O stations: 100 with repeater
Number of I/O points: approx. 6,000, depending on the master
Data transfer medium: shielded copper cable, 2 x 0.25 mm²
Max. cable length 1,200 m: 1,200 m 1,000 m 400 m 200 m 100 m 1,000 m
1,200 m: 1,000 m
Data transfer rates 9.6/19.2/ 93.75 kbaud: 9.6/19.2/ 93.75 kbaud 187.5 kbaud 500 kbaud 1,500 kbaud …3, 6, 12 Mbaud 187.5 kbaud
9.6/19.2/ 93.75 kbaud: 187.5 kbaud
