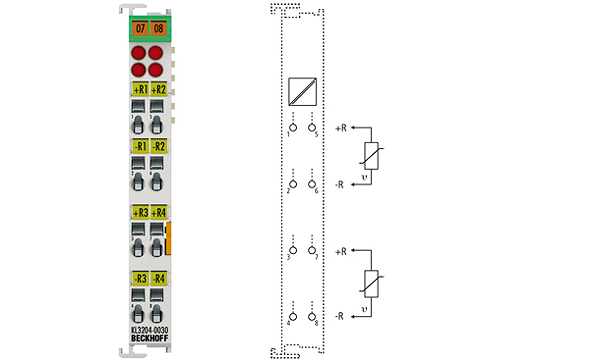

Prawa autorskie do obrazu: Beckhoff
Beckhoff KL3204-0030
KL3204-0030 | 4-channel input terminal NTC (10 kΩ)
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
The KL3204-0030 analog input terminal enables four NTC resistance sensors to be connected directly. The Bus Terminal's circuitry can handle sensors using the 2-wire technique. Linearisation over the full temperature range is realised with the aid of a microprocessor. The standard setting of the Bus Terminal is a resolution of 0.1 °C in the temperature range of the NTC 10 kΩ sensors. The error LEDs indicate sensor faults (e.g. a broken wire). The KL3204 combines four channels in a single housing.
Parametry techniczne
| Number of inputs: | 4 |
| Power supply: | via the K-bus |
| Technology: | 2-wire |
| Sensor types: | NTC10k (carel characteristic curve, 0 °C: 27280 Ω) |
| Connection method: | 2-wire |
| Resolution: | 0.1 °C per digit |
| Conversion time: | ~ 250 ms |
| Measuring current: | typ. < 0.5 mA |
| Measuring error: | < ±1 °C |
| Electrical isolation: | 500 V (K-bus/signal voltage) |
| Current consumption power contacts: | – (no power contacts) |
| Current consumption K-bus: | typ. 60 mA |
| Bit width in the process image: | input: 4 x 16 bit data (4 x 8 bit control/status optional) |
| Configuration: | no address setting, configuration via Bus Coupler or controller |
| Special features: | open-circuit recognition |
| Weight: | approx. 70 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL |
