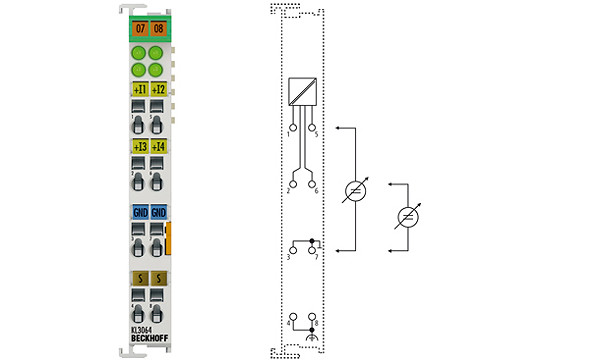

Beckhoff KL3064
KL3064 | 4-channel analog input terminal 0…10 V
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
The KL3064 analog input terminal handles signals in the range from 0 to 10 V. The voltage is digitised to a resolution of 12 bits and is transmitted, electrically isolated, to the higher-level automation device. The input channels of a Bus Terminal have a common ground potential. The KL3064 combines four channels in one housing. The run LEDs give an indication of the data exchange with the Bus Coupler.
Parametry techniczne
| Number of inputs: | 4 |
| Power supply: | via the K-bus |
| Signal voltage: | 0…10 V |
| Technology: | single-ended |
| Internal resistance: | > 200 kΩ typ. |
| Common-mode voltage UCM: | – |
| Resolution: | 12 bit |
| Conversion time: | ~ 4 ms |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Electrical isolation: | 500 V (K-bus/signal voltage) |
| Current consumption power contacts: | – (no power contacts) |
| Current consumption K-bus: | typ. 85 mA |
| Bit width in the process image: | input: 4 x 16 bit data (4 x 8 bit control/status optional) |
| Configuration: | no address or configuration setting |
| Weight: | approx. 80 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex, GL |
