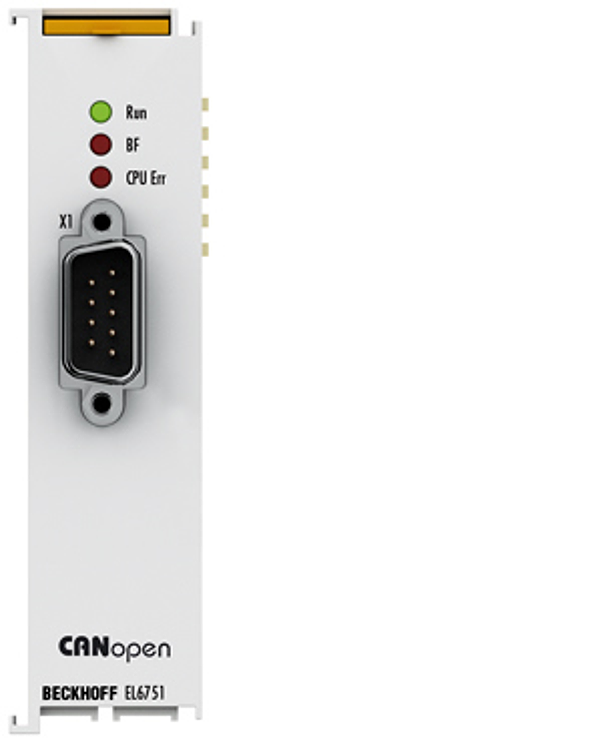

Beckhoff EL6751
EL6751 | CANopen master/slave terminal
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
The Terminal enables within an EtherCAT Terminal network the integration of any CANopen devices and can either be master (EL6751) or slave (EL6751-0010). In addition, general CAN messages can be sent or received – without having to bother with CAN frames in the applications program. The terminal has a powerful protocol implementation with many features:
Parametry techniczne
| Technology: | CANopen master terminal |
| Fieldbus: | CANopen |
| Number of fieldbus channels: | 1 |
| Data transfer rates: | 10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud |
| Interfaces: | D-sub connector, 9-pin according to CANopen specification, galvanically decoupled |
| Communication: | CANopen network master and CANopen manager, optionally CANopen slave |
| Hardware diagnosis: | status LEDs |
| Distributed clocks: | – |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 230 m A |
| Special features: | status LEDs, CANopen network master, CANopen Manager, supports RAW-CAN |
| Weight: | approx. 70 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex |
