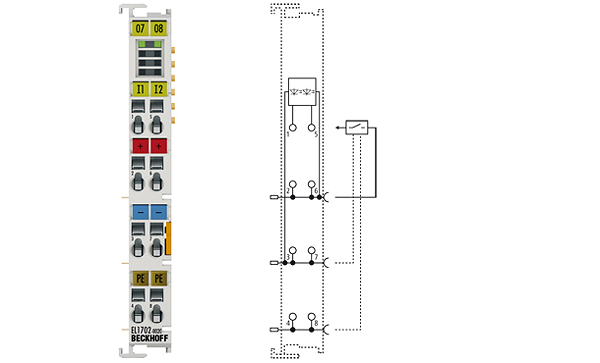

Beckhoff EL1702-0020
EL1702-0020 | 2-channel digital input terminal 220 V DC
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
The EL1702-0020 digital input terminal acquires the binary control signals from the process level and transmits them, electrically isolated, to the higher-level automation device. Direct connection of DC actuators is possible. The EtherCAT Terminal has two channels that indicate their signal state via light emitting diodes.
Parametry techniczne
| Connection technology: | 4-wire |
| Number of inputs: | 2 |
| Nominal voltage: | 220 V DC |
| “0” signal voltage: | 0…100 V |
| “1” signal voltage: | 180…264 V |
| Input current: | typ. 1.4 mA |
| Input filter: | typ. 3.0 ms |
| Distributed clocks: | – |
| Current consumption power contacts: | load-dependent |
| Current consumption E-bus: | typ. 90 mA |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Weight: | approx. 60 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
