Producto
Pulsotronic
08400834664
KURT250-Q12KB-ANU-V1
Solicitar una oferta

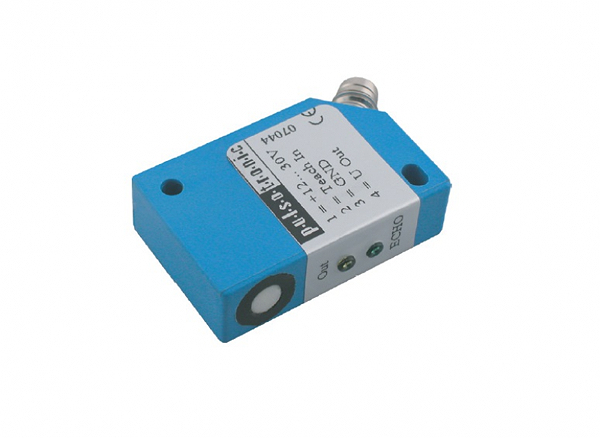

Derechos autor imagen: Pulsotronic
Pulsotronic 08400834664
KURT250-Q12KB-ANU-V1
Ultrasonic sensor
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Name: | KURT250-Q12KB-ANU-V1 |
| Order number: | 08400834664 |
| Matchcode: | 9983-4664 |
| Switch type: | analog |
| Signal Type: | Analog Voltage |
| Connection: | Connector |
| Connection diagramm: | |
| Dimension (in mm): | Q 26 x 12 x 40.5 |
| Signal type: | Taster |
| Operating voltage: | 12 - 30 V DC |
| No load current: | < 35 mA |
| Operating temperature: | -15 ° C to 70 ° C |
| Repeat accuracy: | ≥ 0,2mm|+/-0,2 % |
| Linearity: | < 0,3 % |
| Operating state: | LED |
| Analog output: | Pulso_has10-10V |
| Time delay: | 10 ms |
| Carrier frequency: | 400 kHz |
| Sound beam: | ca. 8° |
| Pulse rate of rise: | teach in |
| Measuring range: | 2,5-25 cm |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-7:2004-06 |
| Housing material: | Plastic |
| Termination: | Connector M8 4pol |
| Errors and omissions exceptet: |
Parámetros logísticos
| ECCN: | |
| País de origen: | |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
