Pulsotronic 08317321632
KJ2-M8KN30-NA-HT125-X0241
Inductive sensor NAMUR
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Name: | KJ2-M8KN30-NA-HT125-X0241 |
| Order number: | 08317321632 |
| Matchcode: | 9932-1632 |
| Switching distance: | 2 mm |
| Mounting: | non shielded |
| Signal Type: | Namur |
| Connection: | Cable |
| Connection diagramm: | |

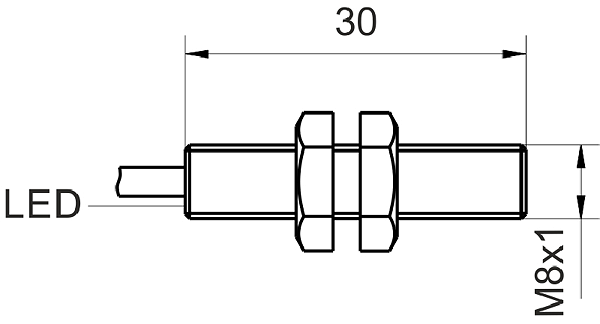

| Dimension (in mm): | fine-pitch thread M8 x 30 |
| Special features: | temperature resistant up to 125°C |
| Operating voltage: | 6 - 12 VDC |
| Max. ripple: | ≤ 5 % |
| Switching frequency: | 1000 |
| Operating temperature: | -25 ° C to 125 ° C |
| Temperature drift: | ≤ 10 % |
| Repeat accuracy: | ≤ 10 % |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-6:2000-12 |
| Housing material: | Arnite |
| Termination: | 5m PTFE 2x0,25mm² |
| Errors and omissions exceptet: | < 1,1mA |
| Laststrom unbedämpft:: | > 2,2mA |
| Hysterese:: | siehe Schaltgerät |
| Fehler und Änderungen vorbehalten: |
Parámetros logísticos
| ECCN: | |
| País de origen: | |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
