Producto
Pulsotronic
08317141665
KJ9-M30MB50-ANI-V2
Solicitar una oferta
Derechos autor imagen: Pulsotronic
Pulsotronic 08317141665
KJ9-M30MB50-ANI-V2
Inductive sensor analogue
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Name: | KJ9-M30MB50-ANI-V2 |
| Order number: | 08317141665 |
| Matchcode: | 9914-1665 |
| Switching distance: | from 1 mm to 9 mm |
| Mounting: | shielded |
| Switch type: | analog |
| Signal Type: | analog current |
| Connection: | connector M12 |
| Connection diagramm: | |

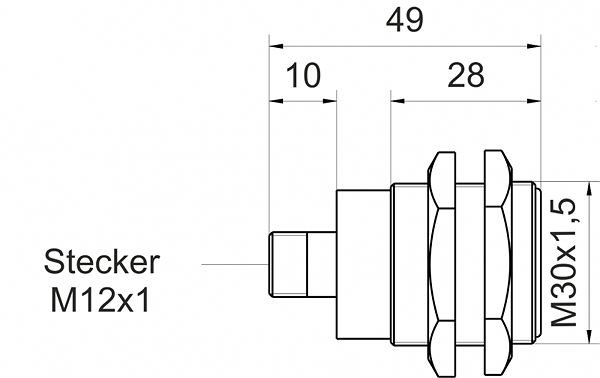

| Dimension (in mm): | fine-pitch thread M30 x 50 |
| Special features: | Ausgangsstrom 4 ... 20 mA |
| Operating voltage: | 11 - 35 VDC |
| Max. ripple: | ≤ 5 % |
| No load current: | ≤ 10 mA |
| Switching frequency: | 300 Hz |
| Operating temperature: | -25 ° C to 70 ° C |
| Temperature drift: | +/-5 % |
| Repeat accuracy: | ≤ 1 % |
| Linearity: | ≤ 5 % |
| Time delay: | 300 ms |
| Resolution: | 2 mA / mm |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-7:2004-06 |
| Housing material: | Brass, nickel plated |
| Material active face: | PCB |
| Rated operating current at 40° C: | 10 mA |
| Rated operating voltage: | |
| Utilisation category: | DC 13 |
| Contact material: | CuSn |
| Contact surface material: | NiAu |
| Contact holder: | PA 6 |
| Nominal operating voltage: | 24 V DC |
| Termination: | Connector M12 4pin |
| internal load resistor: | <= 500 Ohm |
| FIT / MTTF acc. to SIEMENS 29500: | 79,07 / 1444y |
| Errors and omissions exceptet: |
Parámetros logísticos
| ECCN: | |
| País de origen: | |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
