Producto
Pulsotronic
08317130100
KJ4-M10MB35-VK
Solicitar una oferta
Derechos autor imagen: Pulsotronic
Pulsotronic 08317130100
KJ4-M10MB35-VK

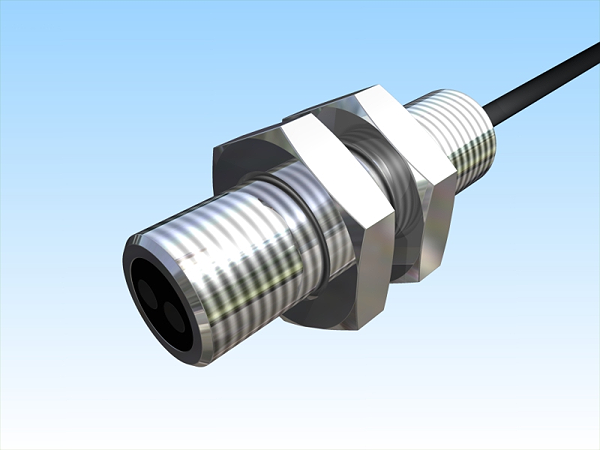

Inductive sensor Pick-Up
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Name: | KJ4-M10MB35-VK |
| Order number: | 08317130100 |
| Matchcode: | 9913-0100 |
| art_schaltabstand_einstellbar: | yes |
| Switching distance: | 4 mm |
| Mounting: | shielded |
| Connection: | Cable |
| Dimension (in mm): | fine-pitch thread M10 x 35 |
| Special features: | PickUp sensor for using with Amplifiers Termination by BNC-Connector |
| Switching frequency: | 5000 Hz |
| Switching hysterese: | bei Sn = 2,0 < 0,04mm |
| Operating temperature: | -10 ° C to 70 ° C |
| Repeat accuracy: | ≤ 0,01 mm |
| Protection category: | IP67 |
| Housing material: | Brass, nickel plated |
| Material active face: | PA 6.6 |
| Cable length: | 2 m |
| Cable material: | KOAX PVC LI2YDY |
| Cable cross: | 1x1,0 mm² |
| FIT / MTTF acc. to SIEMENS 29500: | 6,56 / 17402y |
| Errors and omissions exceptet: |
Parámetros logísticos
| ECCN: | |
| País de origen: | |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
