Producto
Pulsotronic
08313204010
SJ20-Q40KN-ANUI
Solicitar una oferta

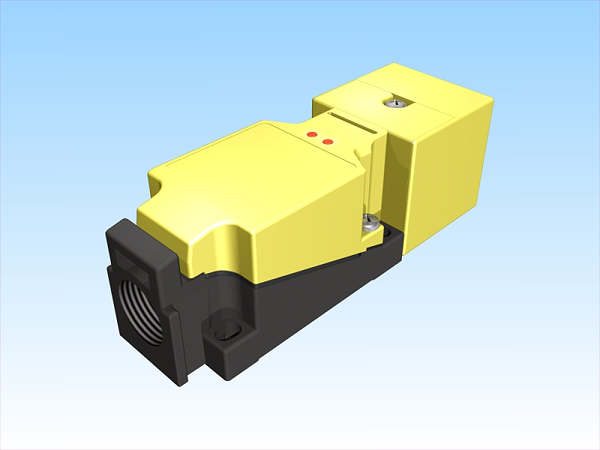

Derechos autor imagen: Pulsotronic
Pulsotronic 08313204010
SJ20-Q40KN-ANUI
Inductive sensor DC
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Name: | SJ20-Q40KN-ANUI |
| Order number: | 08313204010 |
| Switching distance: | from 10 mm to 20 mm |
| Mounting: | non shielded |
| Switch type: | analog |
| Signal Type: | Analog Current/Voltage |
| Connection: | Terminal |
| Connection diagramm: | |
| Dimension (in mm): | Q 40 x 40 x 120 |
| Special features: | Output Voltage 0 ... 10 Volt Output Current 0 ... 20 mA |
| Operating voltage: | 18 - 30 V DC |
| Max. ripple: | ≤ 10 % |
| Switching frequency: | 30 Hz |
| Temperature drift: | +/- 5 % |
| Repeat accuracy: | < 0,02 % |
| Linearity: | 10 % |
| Time delay: | 500 ms |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-7:2004-06 |
| Housing material: | PBT |
| Utilisation category: | DC 13 |
| Nominal operating voltage: | 24 V DC |
| Termination: | Terminal 1,5mm² |
| Housing Material: | PBT Resin |
| Errors and omissions exceptet: |
Parámetros logísticos
| ECCN: | |
| País de origen: | |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
