Producto
Pulsotronic
08313080153
KJ1,5-M8EB16-DNS
Solicitar una oferta
Derechos autor imagen: Pulsotronic
Pulsotronic 08313080153
KJ1,5-M8EB16-DNS
Inductive sensor DC
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Name: | KJ1,5-M8EB16-DNS |
| Order number: | 08313080153 |
| Switching distance: | 1,5 mm |
| Mounting: | shielded |
| Switch type: | N.O. |
| Signal Type: | DC NPN |
| Connection: | Cable |
| Connection diagramm: | |

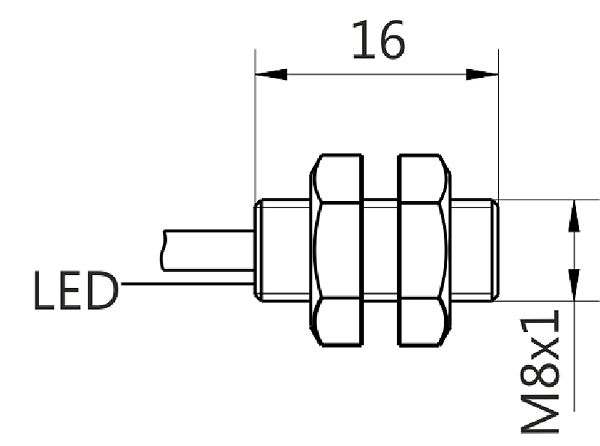

| Dimension (in mm): | M8x1 x 16 |
| Operating voltage: | 10 - 30 VDC |
| Max. ripple: | ≤ 10 % |
| Voltage drop: | 2,4 V |
| Max. load current: | 200 mA |
| No load current: | ≤ 10 mA |
| Leakage current: | ≤ 10 µA |
| Switching frequency: | 2000 Hz |
| Switching hysterese: | ≤ 15 % |
| Operating temperature: | -25 ° C to 70 ° C |
| Temperature drift: | ≤ 10 % |
| Repeat accuracy: | ≤ 5 % |
| Swiching state: | LED |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-2:2008 |
| Housing material: | Stainless steel V2A |
| Material active face: | PBT |
| Cable length: | 2 m |
| Utilisation category: | DC13 |
| Cable material: | PVC |
| Cable cross: | 3x0.14 mm² |
| Termination: | 2m PVC 3x0.14mm² |
| Errors and omissions exceptet: | Pocan KU 2-7503/1 + Batch RAL 9004 |
| FIT / MTTF: | 60,51 / 1887y |
| Fehler und Änderungen vorbehalten: |
Parámetros logísticos
| ECCN: | |
| País de origen: | |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
