Producto
Pulsotronic
08310002500
KJ3-M12EB60-DPS-HT150-X0240
Solicitar una oferta

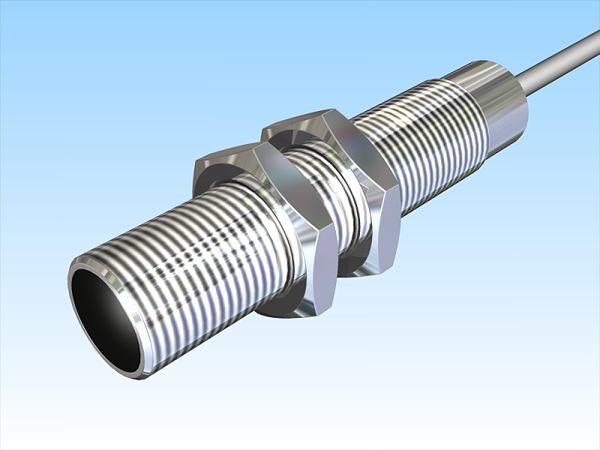

Derechos autor imagen: Pulsotronic
Pulsotronic 08310002500
KJ3-M12EB60-DPS-HT150-X0240
Inductive sensor high temperature
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Name: | KJ3-M12EB60-DPS-HT150-X0240 |
| Order number: | 08310002500 |
| Switching distance: | 3 mm |
| Mounting: | shielded |
| Switch type: | N.O. |
| Signal Type: | DC PNP |
| Connection: | Cable |
| Connection diagramm: | |
| Dimension (in mm): | fine-pitch thread M12 x 60 |
| Special features: | high temperature sensor up to 150°C Connecting Cable PTFE |
| Operating voltage: | 10 - 35 V DC |
| Max. ripple: | ≤ 10 % |
| Voltage drop: | 2 V |
| Max. load current: | 120 mA |
| No load current: | ≤ 15 mA |
| Leakage current: | ≤ 20 µA |
| Switching frequency: | 500 Hz |
| Switching hysterese: | ≤ 15 % |
| Operating temperature: | -25 ° C to 150 ° C |
| Temperature drift: | +/- 15 % |
| Repeat accuracy: | ≤ 3 % |
| Time delay: | 1 ms |
| Short-circuit proof: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP65 |
| EMC-level: | DIN EN 60947-5-2: 2008 |
| Housing material: | Stainless steel V2A |
| Material active face: | VECTRA |
| Cable length: | 2 m |
| Utilisation category: | DC 13 |
| Cable material: | PTFE |
| Conductor diameter: | 1,2 mm mm mm |
| Nominal operating voltage: | 24 V DC |
| Cable cross: | 3x0.22 mm² |
| MTTF acc. to SIEMENS 29500: | 358y |
| Errors and omissions exceptet: |
Parámetros logísticos
| ECCN: | |
| País de origen: | |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
