Producto
Puls
SL20.113
Solicitar una oferta
Derechos autor imagen: Puls

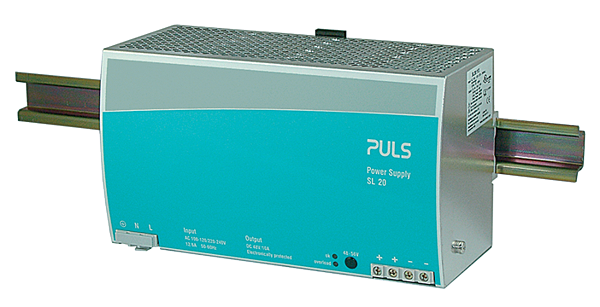

Puls SL20.113
DIN-rail power supplies for 1-phase systems
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
115 / 230V Auto-select input. Efficiency up to 92,8%. 25% Power reserves for loads with a higher short-term power requirement. Full output power between 0 and +60°C
Parámetros técnicos
| AC-Input Voltage: | AC 100-120/220-240V |
| DC-Input Voltage: | |
| EN61000-3-2(PFC-Norm): | not fulfilled |
| Nominal Voltage: | 48Vdc |
| Adjustment Range: | 48-56V |
| Output Current Range: | 10-8.6A |
| Output Current: | 8.6A at 56V 10A at 48V |
| Output Power: | 480W |
| Size (WxHxD): | 220mm x 124mm x 102mm |
| Weight per Piece (excluding packing): | 1800g |
| Mounting Method: | DIN-Rail |
| Connection method: | Screw terminals |
Parámetros logísticos
| ECCN: | |
| País de origen: | |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
