Producto
Puls
ML30.101
Solicitar una oferta
Derechos autor imagen: Puls

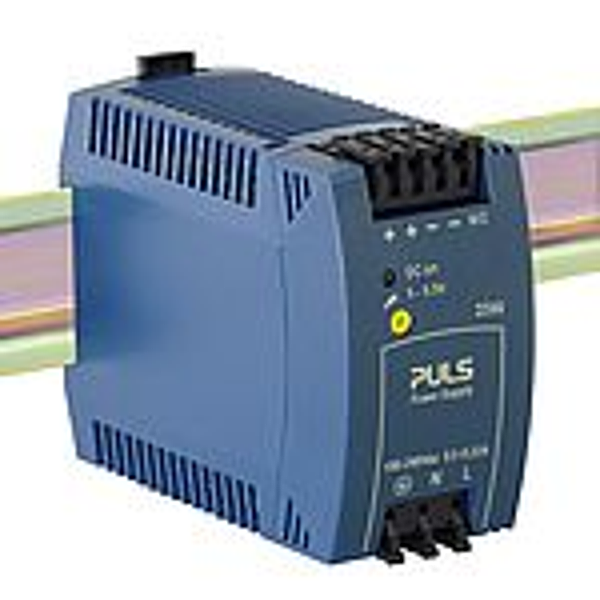

Puls ML30.101
DIN-rail power supplies for 1-phase systems
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
100-240V Wide-range input. Efficiency up to 80%. NEC Class 2 Listed. Full output power between -10 and +60°C. Quick-connect spring-clamp terminals. Adapter for Wall Mounting includet
Parámetros técnicos
| AC-Input Voltage: | AC 100-240V (-15%/+10%) |
| DC-Input Voltage: | DC 110V-300V (-20%/+25%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Power Factor: | 0.44 |
| Input Inrush Current Limitation: | NTC |
| Peak turn on current: | 17A/35A (B1) |
| External Input Fuse Recommendation: | min. B-10A / C-6A |
| Nominal Voltage: | 5Vdc |
| Adjustment Range: | 5-5.5V |
| Output Current Range: | 5A |
| Output Current: | 5A at 5V |
| Output Power: | 25W |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 45mm x 75mm x 91mm |
| Weight per Piece (excluding packing): | 240g |
| Operat. Temperature Range: | -10°C ... +70°C |
| Derating: | 0.5W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 80.0% |
| Power Losses, typ.: | 6.3W |
| MTBF SN 29500 @ 40°C (h): | 1.963.000h |
| Connection method: | Spring-clamp terminals |
| B1): | Peak current at 120Vac/230Vac, ambient temperature of +40°C and cold start |
