Producto
Escha
8080678
IE-W0RJ45SS8.005-10/S3400
Solicitar una oferta

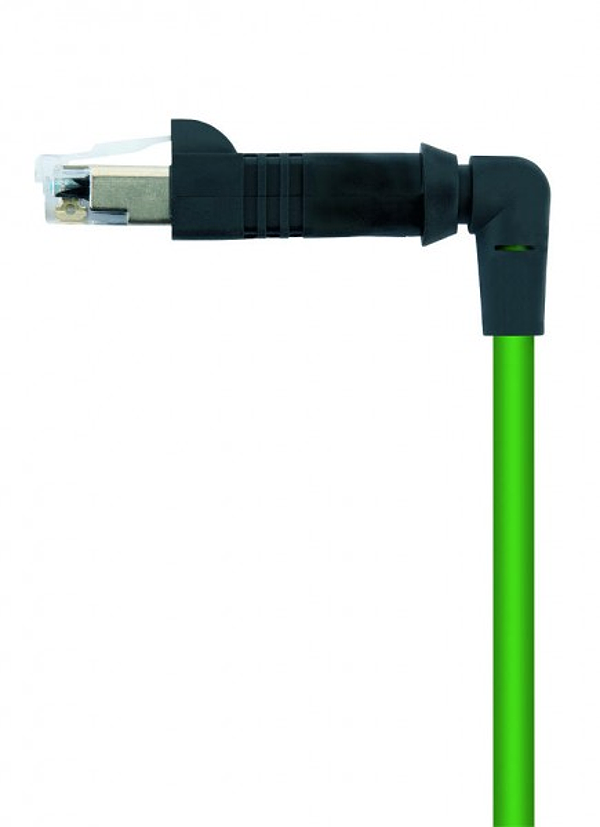

Derechos autor imagen: Escha
Escha 8080678
IE-W0RJ45SS8.005-10/S3400
RJ45 male, angled, Industrial Ethernet, 100 MBit/s, 4 poles, shielded
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Shielded PUR Ethernet-cable for industrial applications. Fits to real-time requirements according to IEC61158. The cable meets the UL-Style20963 (80°/30V)- and the Cat5 (electrical properties according to EN50288-2-2) requirements. Materials and a constructive setup for increased mechanical stresses (abrasion, bending, vibrations etc.) of the cable. Drag-chain/torsion operations are possible. High tensile strength through incorporated Kevlar-strands.
Descargas
Parámetros técnicos
| Transmission features: | Cat5e |
| Connector: | male, angled, RJ45, 0° |
| Number of pins: | 4 |
| Pin assignment: | 1 WHOG, 2 OG, 3 WHBU, 6 BU |
| Wire insulation material: | PP |
| Current load (at 40°C): | 1 |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -40°C...+70°C |
| Contact material: | Metal, CuZn, gold-plated |
| Transmission features: | Cat5 |
| Contact-carrier material: | Plastic, PA UL94-V0, transparent |
| Material of shielding housing: | Metal, CuZn, nickel-plated |
| Standards: | IEC 60603-7-5 |
| Degree of protection (mounted): | IP20 |
| Mechanical life-cycle: | >750 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 1 |
| Shielding: | with shielding |
Parámetros logísticos
| ECCN: | |
| País de origen: | Deutschland |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
