Producto
Escha
8077972
AL-FVM12SUA5-0,5/M16/S520
Solicitar una oferta

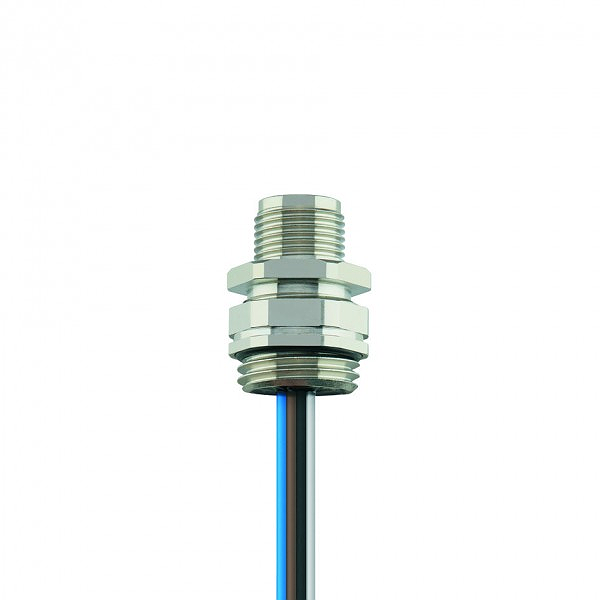

Derechos autor imagen: Escha
Escha 8077972
AL-FVM12SUA5-0,5/M16/S520
Receptacle, M12 male, straight, 4+PE poles, A-coded, front wall-mounting, wire contact
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Fastening thread: | M16x1.5 |
| Wrench size of fastening nut: | A/F19 |
| Connector: | male, straight, M12 |
| Number of pins: | 4+PE |
| Pin assignment: | 1 BN, 2 WH, 3 BU, 4 BK, 5 GNYE |
| Coding: | A |
| Rated voltage: | 60V |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | ≥10 8 |
| Wire colors: | BN, WH, BU, BK, GNYE |
| Wire cross-section PE: | 1 x 0.34 mm² |
| Wire insulation material: | PVC |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuSn, gold-plated |
| Contact-carrier material: | Plastic, PA GF, BK |
| Receptacle housing material: | Metal, CuZn, nickel-plated |
| Material of external sealing: | NBR |
| Connecting type: | Wire contact |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mounting direction: | Front wall-mounting, positionable |
| Wire length: | 0.5 |
| Mechanical life-cycle: | >100 mating cycles |
| Receptacle housing material, conecting-plug: | Metal, CuZn, nickel-plated |
| Degree of pollution: | 3 |
Parámetros logísticos
| ECCN: | |
| País de origen: | Deutschland |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
