Producto
Escha
8075322
PK-WM12S5.244-10/S5015
Solicitar una oferta

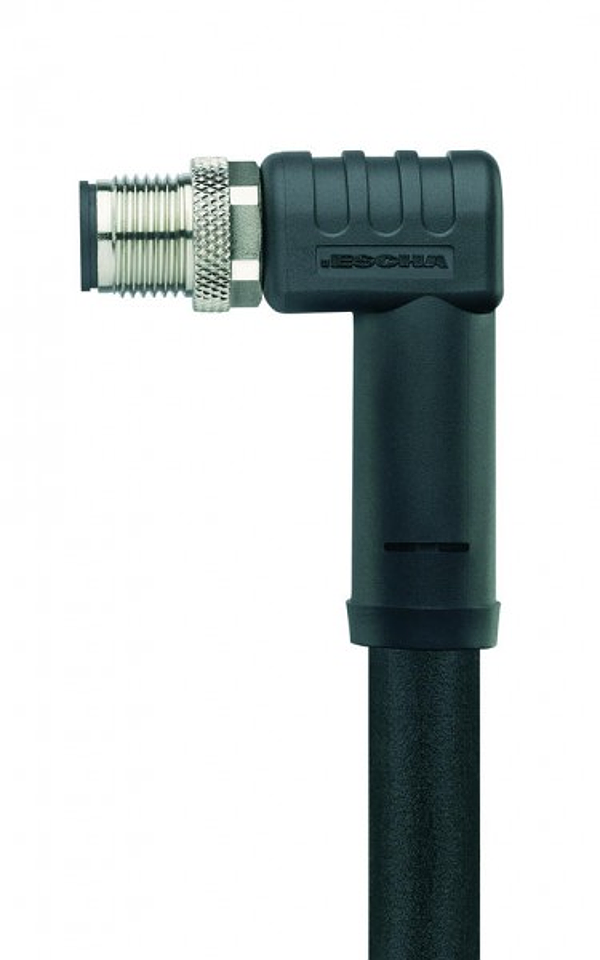

Derechos autor imagen: Escha
Escha 8075322
PK-WM12S5.244-10/S5015
M12 male, angled, POWER, 4+PE poles, K-coded
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
High flexible and oil-resistant, halogen-free control cables for fixed-wired dynamic drag-chain applications ( a = 50 m/s²) with average loads. The PUR outer jacket is firm and resistant to high mechanical stresses like grinding or abrasion. They are adapted for applications in automation, load circuits of industrial machinery, automatic assembly- and placement machinery, especially in wet areas of machine tools and transfer lines. The cables meet the UL and CSA requirements.
Descargas
Parámetros técnicos
| Outer diameter of jacket: | 9,90 mm |
| Material: | PUR |
| Jacket color: | BK, similar RAL9005 |
| Wire cross-section: | 5 x 1.5 mm² |
| Wire insulation material: | PP |
| Current load (at 40°C): | 12 |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Temperature range (fixed): | -40°C...+80°C |
| Temperature range (repeated): | -25°C...+80°C |
| Contact-carrier material: | Plastic, PA, BK |
| Temperature range (UL fixed): | -50°C...+80°C |
| Standards: | IEC 61076-2-111 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Special features: | flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, drag chain-adapted, welding sparks resistant, halogen free, oil resistant, high flexibility, microbes resistant |
| Cable end assembly: | open cable end |
| Degree of pollution: | 2 |
Parámetros logísticos
| ECCN: | |
| País de origen: | Deutschland |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
