Producto
Escha
8071417
AL-FVM8SUA3-0,2/M8
Solicitar una oferta
Derechos autor imagen: Escha

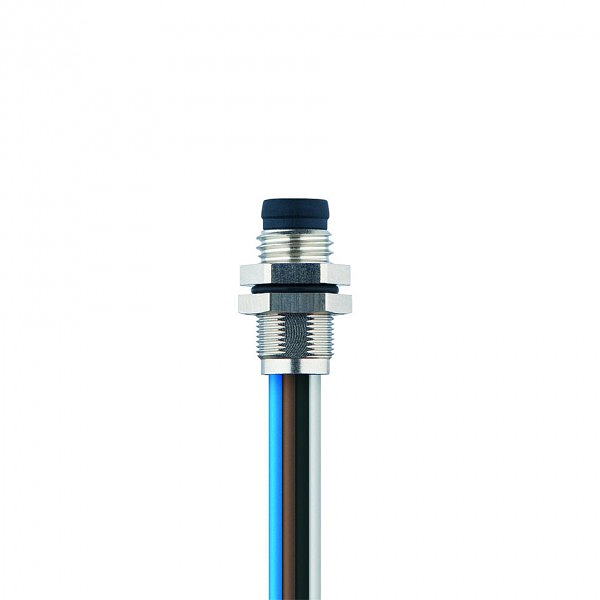

Escha 8071417
AL-FVM8SUA3-0,2/M8
Receptacle, M8 male, straight, 3 poles, A-coded, front wall-mounting, wire contact
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Fastening thread: | M8x0,5 |
| Connector: | male, straight, M8 |
| Number of pins: | 3 |
| Pin assignment: | 1 BN, 3 BU, 4 BK |
| Coding: | A |
| Rated voltage: | 60V |
| Current load (at 40°C): | 4 |
| Wire colors: | BN, BU, BK |
| Wire insulation material: | PVC |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuSn, gold-plated |
| Contact-carrier material: | Plastic, TPU, BK |
| Receptacle housing material: | Metal, CuZn, nickel-plated |
| Wall thickness area (Δh): | 2,0...5,0 mm |
| Connecting type: | Wire contact |
| Standards: | IEC 61076-2-104 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mounting direction: | Front wall-mounting (incl. Fixing screw) |
| Wire length: | 0.200000000000000011102230246251565404236316680908203125 |
| Mechanical life-cycle: | >100 mating cycles |
| Receptacle housing material, conecting-plug: | Metal, CuZn, nickel-plated |
| Degree of pollution: | 3 |
Parámetros logísticos
| ECCN: | |
| País de origen: | Deutschland |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
