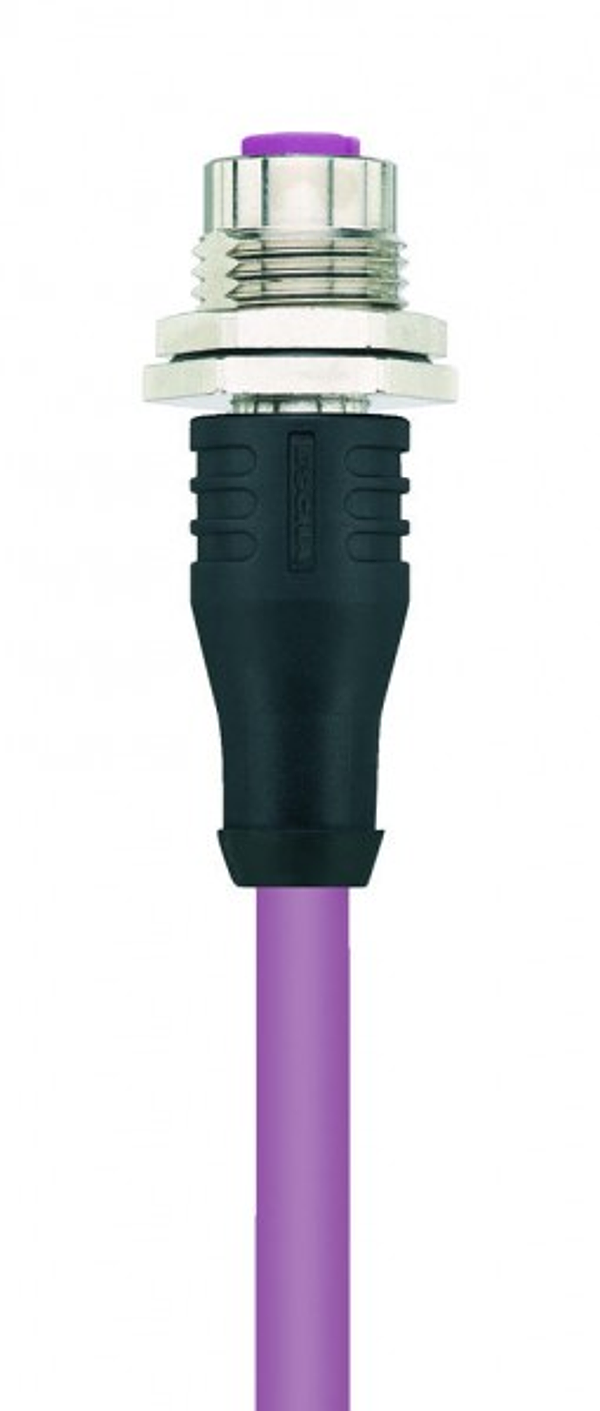

Escha 8063617
PB-FKFDSW2.012-5/16/S1800
Receptacle single-ended cordset, M12 female, straight, Profibus, 5 poles, B-coded, back wall-mounting, shielded
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
UL- and CSA-listed shielded PUR-cable for automation technology (control of sensors and actuators). Suited for common variants of PROFIBUS DP and PROFIBUS PA. Setup and materials used allow for applications under harsh enviroment conditions (abrasion, bending, vibrations etc.). Drag-chain application is possible. (>1million bending cycles).
Descargas
Parámetros técnicos
| Fastening thread: | M16x1.5 |
| Material: | PUR |
| Number of pins: | 5 |
| Pin assignment: | 1 n.c., 2 GN, 3 n.c., 4 RD, 5 n.c. |
| Wire insulation material: | PE |
| Wire colors: | RD, GN |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuZn, gold-plated |
| Halogen-free: | Yes |
| Rated voltage cable: | 300V |
| Receptacle housing material: | Metal, CuZn, nickel-plated |
| Material of external sealing: | NBR |
| Adjustable fixing screw: | Yes |
| Connecting type: | Cable |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mounting direction: | Back wall-mounting (incl. Fixing screw) |
| Mechanical life-cycle: | >100 mating cycles |
| Receptacle housing material, conecting-plug: | Metal, CuZn, nickel-plated |
| Degree of pollution: | 3 |
| Shielding: | with shielding |
