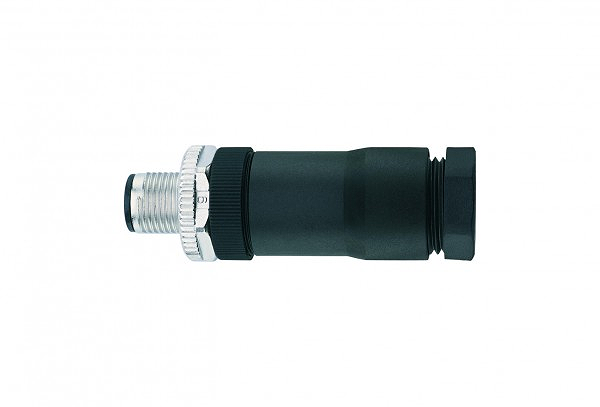

Escha 8063399
PS-WASC4K
M12 male, straight, field-wireable, 3+PE poles, S-coded, screw-/clamp contact, 630V, 12A
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Connector: | male, straight, M12 |
| Number of pins: | 3+PE |
| Coding: | S |
| Rated voltage: | 630V DC |
| Resistance (mΩ): | 3 |
| Current load (at 40°C): | 12 |
| Insulation resistance (Ω): | ≥10 8 |
| Cable outlet: | 8...10 mm |
| Connecting cross-section: | max. 1,50 mm² |
| Ambient temperature product: | -40°C...+85°C |
| Contact material: | Metal, CuZn, gold-plated |
| Grip body material: | Plastic, PA, BK |
| Contact-carrier material: | Plastic, PA, BK |
| Connecting type: | Screw-/clamp contact |
| Standards: | IEC 61076-2-111 |
| Degree of protection (mounted): | IP67 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
Parámetros logísticos
| ECCN: | |
| País de origen: | Deutschland |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
