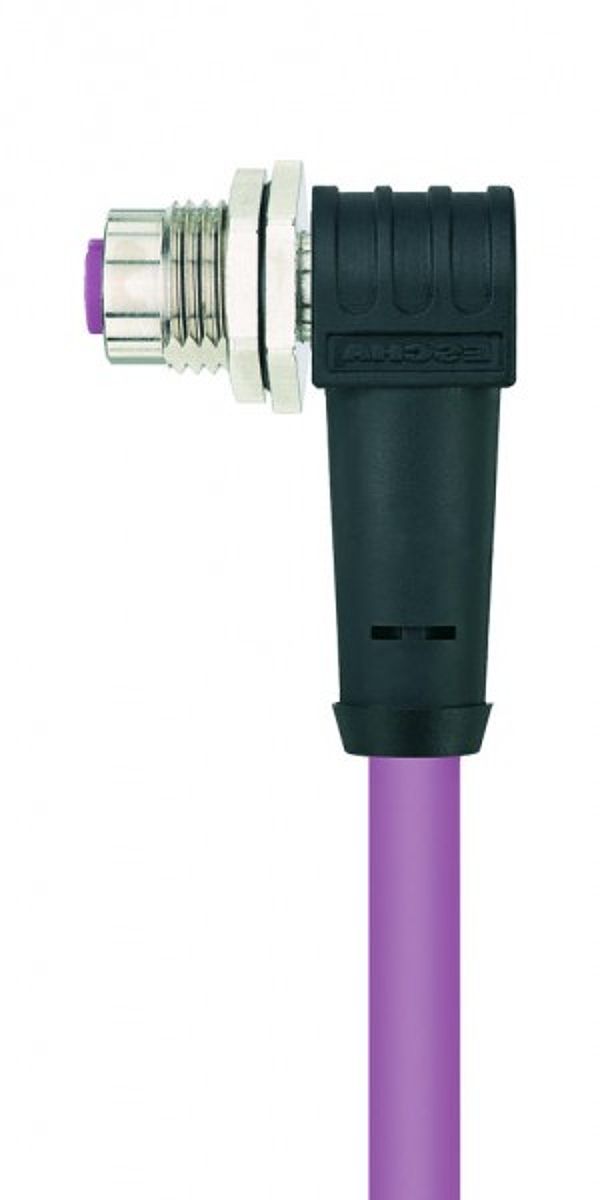

Escha 8061881
PB-WFKFDSW2.012-2/16/S1800
Receptacle single-ended cordset, M12 female, angled, Profibus, 5 poles, B-coded, back wall-mounting, shielded
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
UL- and CSA-listed shielded PUR-cable for automation technology (control of sensors and actuators). Suited for common variants of PROFIBUS DP and PROFIBUS PA. Setup and materials used allow for applications under harsh enviroment conditions (abrasion, bending, vibrations etc.). Drag-chain application is possible. (>1million bending cycles).
Descargas
Parámetros técnicos
| Outer diameter of jacket: | 7,60 mm |
| Material: | PUR |
| Number of pins: | 5 |
| Pin assignment: | 1 n.c., 2 GN, 3 n.c., 4 RD, 5 n.c. |
| Coding: | B |
| Wire colors: | RD, GN |
| Conductor structure: | 19 x 0.15 mm |
| Insulation resistance (Ω): | ≥10 8 |
| Temperature range (fixed): | -50°C...+80°C |
| Contact material: | Metal, CuZn, gold-plated |
| Halogen-free: | Yes |
| Rated voltage cable: | 300V |
| Shielding: | Yes |
| Special features: | flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, halogen free, oil resistant, high flexibility, microbes resistant |
| Adjustable fixing screw: | Yes |
| Connecting type: | Cable |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mounting direction: | Back wall-mounting (incl. Fixing screw) |
| Mechanical life-cycle: | >100 mating cycles |
| Receptacle housing material, conecting-plug: | Metal, CuZn, nickel-plated |
| Degree of pollution: | 3 |
| Shielding: | with shielding |
| Fire prevention according to: | DIN EN 45545-2 HL1-3 |
| Temperature range: | Tx (-40°C...+90°C) |
| Shock & vibration: | Class 1, Category B (DIN EN 61373) |
| Degree of protection (mounted): | IP67 (-30°C...+90°C), IP65 (-40°C...+90°C) |
| Standards: | DIN EN 50155, DIN EN 45545-2 |
