Escha 8056580
IE-RJ45SS8.005-5-IE-RJ45SS8.005/S3400

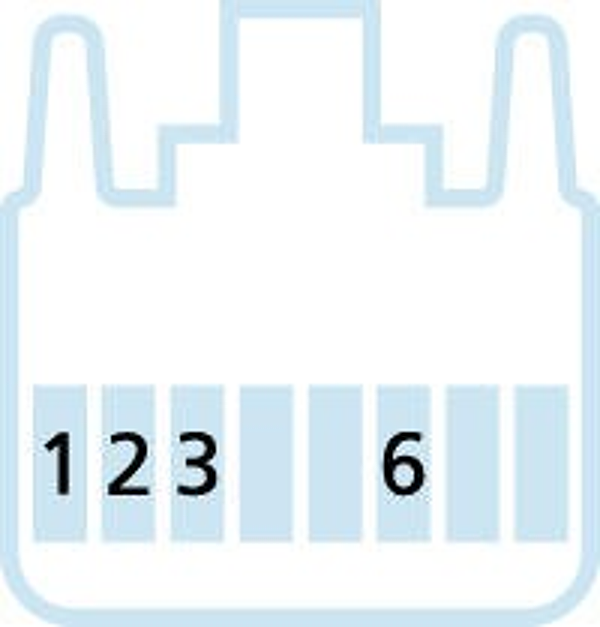

RJ45 male, straight, RJ45 male, straight, Industrial Ethernet, 100 MBit/s, 8 poles, shielded
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Shielded PUR Ethernet-cable for industrial applications. Fits to real-time requirements according to IEC61158. The cable meets the UL-Style20963 (80°/30V)- and the Cat5 (electrical properties according to EN50288-2-2) requirements. Materials and a constructive setup for increased mechanical stresses (abrasion, bending, vibrations etc.) of the cable. Drag-chain/torsion operations are possible. High tensile strength through incorporated Kevlar-strands.
Descargas
Parámetros técnicos
| Outer diameter of jacket: | 4,80 mm |
| Number of pins: | 4 |
| Jacket color: | GN, similar RAL6018 |
| Wire cross-section: | 1 x 4 x AWG26, star quad |
| Wire insulation material: | PP |
| Wire colors: | WHBU/BU, WHOG/OG |
| Insulation resistance (Ω): | ≥10 8 |
| Bending radius (fixed): | 4 x Ø-cable |
| Ambient temperature product: | -40°C...+70°C |
| Transmission features: | Cat5 |
| Contact-carrier material: | Plastic |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, halogen free, oil resistant, high flexibility, microbes resistant |
| Material of shielding housing: | Metal, CuZn, nickel-plated |
| Sealing (female) material: | IEC 60603-7-5 |
| Standards: | IP20 |
| Degree of protection (mounted): | >1000 mating cycles |
| Mechanical life-cycle: | 1 |
| Degree of pollution: | with shielding |
Parámetros logísticos
| ECCN: | |
| País de origen: | Deutschland |
| EAN: | |
| Peso: | 0,16 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
