Escha 8047827
VB21-230.0-5/P01

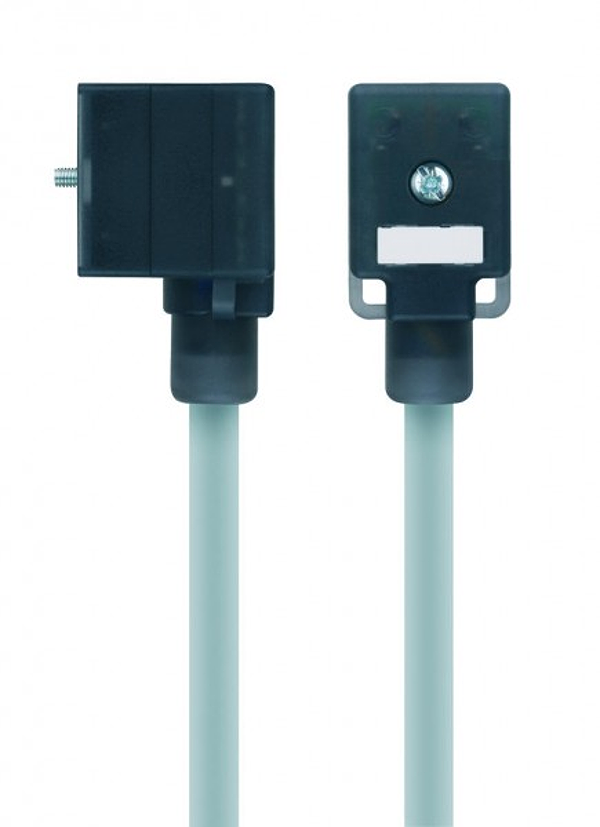

Valve-connector, housing style B, 2+PE, sensor-/actuator cable
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry. P01-cables meet the UL and CSA (UL1729/2464; cULus) requirements.
Descargas
Parámetros técnicos
| Outer diameter of jacket: | 6,10 +/- 0,2 mm |
| Protection circuit: | without |
| Connector: | female, angled, Valve B |
| Number of pins: | 2+PE |
| Pin assignment: | 1 BN, 2 BU, PE: GNYE |
| Rated voltage: | 230V AC/DC |
| Current load (at 40°C): | 10 |
| Bending radius (fixed): | 5 x Ø-cable |
| Ambient temperature product: | -30°C...+90°C |
| Temperature range (repeated): | 0°C...+80°C |
| Grip body material: | Plastic, TPU, BK |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant |
| Standards: | DIN EN 175301-803 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
