Producto
Escha
8047052
AL-SWSPS4.5-2/P00
Solicitar una oferta
Derechos autor imagen: Escha

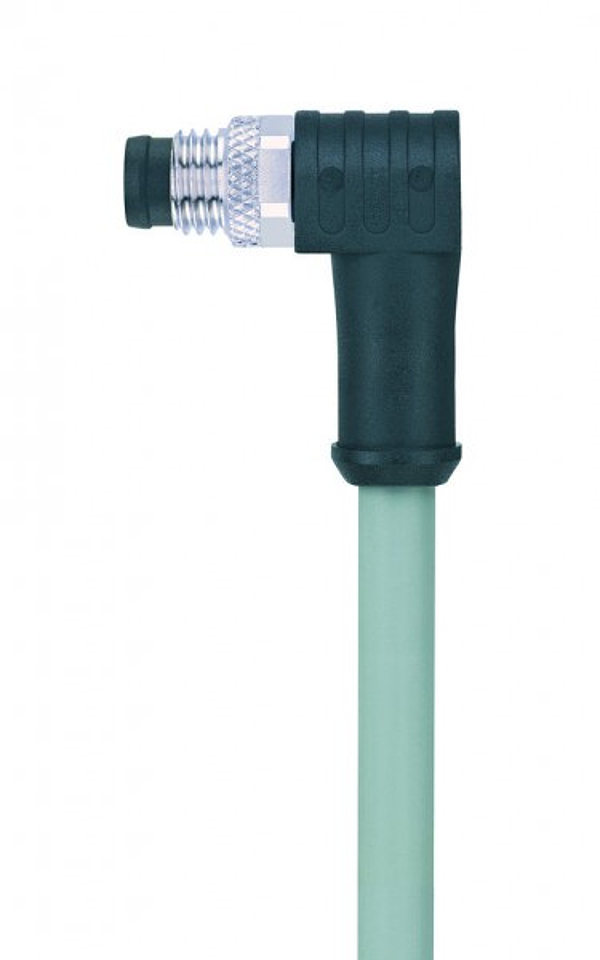

Escha 8047052
AL-SWSPS4.5-2/P00
M8 male, angled, sensor-/actuator cable, 5 poles, shielded
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry. Very good EMC-features with shielded versions.
Descargas
Parámetros técnicos
| Outer diameter of jacket: | 5,30 mm |
| Number of pins: | 5 |
| Pin assignment: | 1 BN, 2 WH, 3 BU, 4 BK, 5 GY |
| Wire cross-section: | 5 x 0.25 mm² |
| Wire insulation material: | PVC |
| Current load (at 40°C): | 3 |
| Conductor structure: | 14 x 0.15 mm |
| Ambient temperature product: | -30°C...+90°C |
| Temperature range (fixed): | -25°C...+80°C |
| Temperature range (repeated): | 0°C...+80°C |
| Rated voltage cable: | ≤300 V |
| Shielding: | Yes |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
| Shielding: | with shielding |
Parámetros logísticos
| ECCN: | |
| País de origen: | Deutschland |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
