Producto
Escha
8046194
AL-SKPS3-10/S370
Solicitar una oferta
Derechos autor imagen: Escha

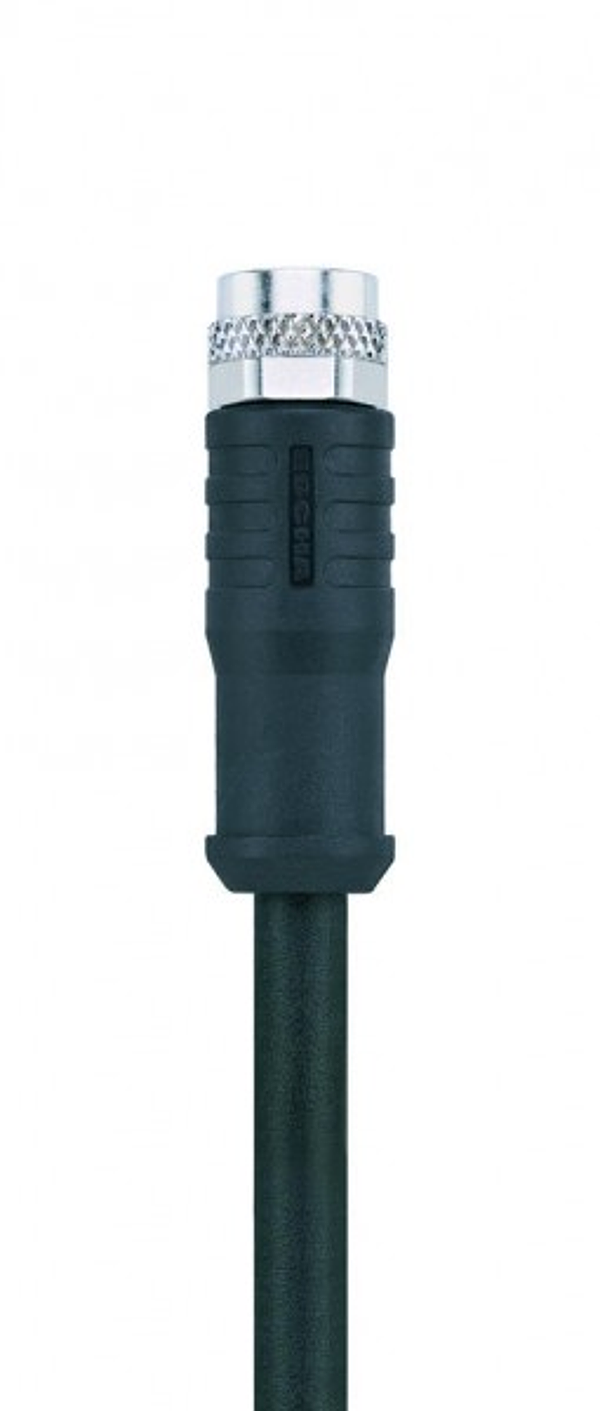

Escha 8046194
AL-SKPS3-10/S370
M8 female, straight, sensor-/actuator cable, 3 poles, shielded
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Flexible, silicone- and halogen-free control cable with high mechanical strength. The cable is chemicals, hydrolysis-, and microbesresistant. The drag-chain application is possible at a bending radius of minimum10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements. Very good EMC-features with shielded versions.
Descargas
Parámetros técnicos
| Connector: | female, straight, M8 |
| Number of pins: | 3 |
| Jacket color: | BK, similar RAL9005 |
| Wire cross-section: | 3 x 0.34 mm² |
| Resistance (mΩ): | 5 |
| Wire colors: | BN, BU, BK |
| Conductor structure: | 42 x 0.10 mm |
| Ambient temperature product: | -30°C...+90°C |
| Temperature range (fixed): | -40°C...+90°C |
| Temperature range (repeated): | -30°C...+90°C |
| Contact-carrier material: | Plastic, TPU, BK |
| Rated voltage cable: | ≤300 V |
| Standards: | IEC 61076-2-104 |
| Special features: | flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
| Shielding: | with shielding |
Parámetros logísticos
| ECCN: | |
| País de origen: | Deutschland |
| EAN: | |
| Peso: | 0,39 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
