Producto
Escha
8044960
EC-WFSF5-P/12
Solicitar una oferta
Derechos autor imagen: Escha

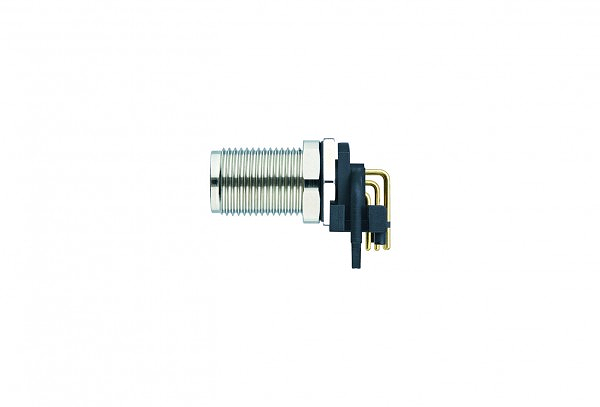

Escha 8044960
EC-WFSF5-P/12
Receptacle, M12 male, angled, 4+PE poles, A-coded, back wall-mounting, print contact
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Connector: | male, angled, M12 |
| Number of pins: | 4+PE |
| Pin assignment: | 1 BN, 2 WH, 3 BU, 4 BK, 5 GNYE |
| Coding: | A |
| Rated voltage: | 60V |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuZn, gold-plated |
| Contact-carrier material: | Plastic, TPU, BK |
| Receptacle housing material: | Metal, CuZn, nickel-plated |
| Material of external sealing: | NBR |
| Connecting type: | Print contact |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mounting direction: | Back wall-mounting (incl. Fixing screw) |
| Mechanical life-cycle: | >100 mating cycles |
| Receptacle housing material, conecting-plug: | Metal, CuZn, nickel-plated |
| Degree of pollution: | 3 |
Parámetros logísticos
| ECCN: | |
| País de origen: | Deutschland |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
