Bernstein 6087000005

MN78-S02 SM

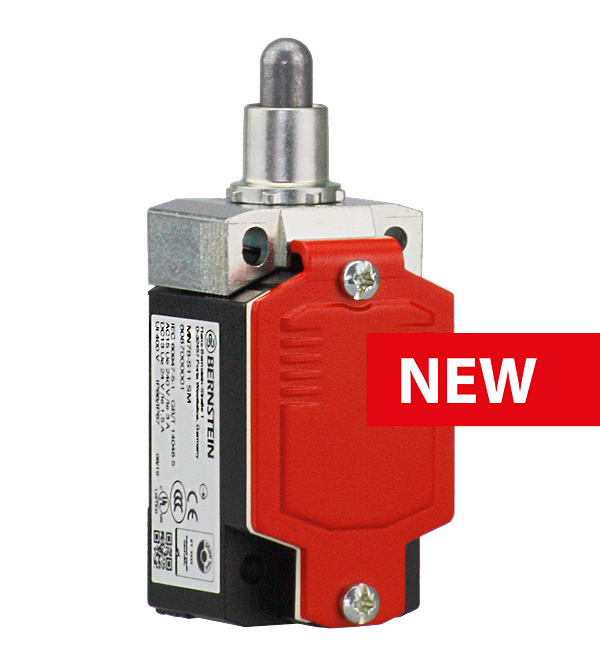

Limit switch Type MN78

Descripción

Especially suitable for switching low currents. Modular design with numerous actuators to choose from. High reliability, C14 or C17 switch insert. Up to 4 contacts. Actuator turnable by 4 × 90°. Standard switch and standard actuator according to DIN EN 50041. Protection class IP65 according to VDE 0470 T1. Slow-action and snap-action contacts. Versions:. With C14 switch insert: 2 NCs, 2 NOs or 1 NC/1 NO. With C17 switch insert: 4 NCs, 4 NOs, 2 NCs/2 NOs, 1NC/3 NOs or 3 NCs/1 NO
