Producto
Belden
11289
RKMV 4-225/1,5 M
Solicitar una oferta
Derechos autor imagen: Belden

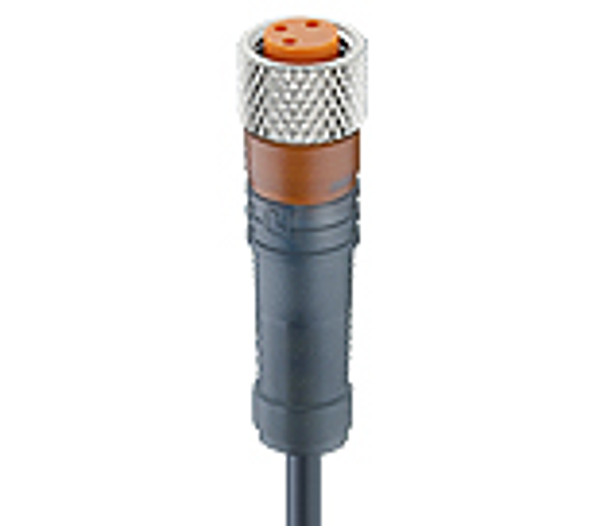

Belden 11289
RKMV 4-225/1,5 M
RKMV 4-225 - M8 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, A-coded, translucent body, 30 V AC/DC, 4 A; PUR black cable, 4-wires, 0.34 mm²
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
M8 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, A-coded, translucent body, 30 V AC/DC, 4 A; PUR black cable, 4-wires, 0.34 mm². M8 Pico actuator/sensor cordset, single-ended, 4-pole, female straight connector with self-locking threaded joint and molded black PUR halogen-free cable.
Descargas
Parámetros técnicos
| brown: | white |
| Product Family:: | Sensor / Actuator Connectors |
| Product Sub Family:: | M8 Standard |
| Brand:: | Lumberg Automation |
| Connector Type:: | Cordset, single ended |
| Type of Contact / Gender:: | Female |
| Connector Design:: | Straight |
| Number of Pins:: | 4 |
| Coding:: | A |
| Shielding:: | Unshielded |
| Attachment Type:: | Coupling Nut |
| Rated Voltage:: | 30 V |
| Rated Voltage (UL):: | 30 V AC/DC |
| Rated Impulse Voltage:: | 0.8 kV |
| Operating Voltage:: | 30 V AC/DC |
| Rated Current*:: | 4 A |
| Rated Current (UL)*:: | 4 A |
| Contact Resistance:: | ≤ 10 mOhm |
| Insulation Resistance:: | ˃ 10^9 Ohm |
| Mating Cycles:: | ≤ 100 |
| Ambient Temperature (Operation)*:: | - 40 °C - + 90 °C |
| Operating Temperature (UL):: | max. + 70 °C |
| Protection Degree / IP Rating**:: | IP65, IP67, IP69K |
| Design Standard:: | IEC 61076-2-104 |
| Pollution Degree:: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category:: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material:: | CuSn |
| Contact Plating:: | Cu/Au |
| Contact Bearer Material:: | TPU |
| Contact Bearer Color:: | Orange |
| Flammability Class (Contact Bearer):: | UL 94 HB |
| Molded Body Material:: | TPU |
| Molded Body Color:: | Translucent |
| Flammability Class (Molded Body):: | UL 94 HB |
| Attachment Material:: | CuZn |
| Attachment Plating:: | Nickel-plated |
| O-Ring Material:: | FKM, green |
| Fastening Torque (Attachment):: | M 8x1: 30 Ncm, hand-tight |
| Cable Number:: | 225 |
| Conductor Size:: | 0.34 mm² |
| Number of Wires:: | 4 |
| Minimal Bending Radius (Fixed Inst):: | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst):: | ˃ 10 x D |
| Cycles (Bending):: | ˃ 5 M |
| Cycles (Torsion):: | ˃ 5 M @ ± 360 °/1 m |
| Conductor material:: | Cu |
| Cable Jacket Material:: | PUR |
| Cable Jacket Color:: | black matt similarly RAL 9005 |
| Cable Diameter D:: | ø 4.70 ± 0.15 mm |
| Wire Insulation Material:: | PP |
| Insulated Wire Diameter:: | ø 1.30 ± 0.10 mm |
| Ambient Temperature (Fixed Installation):: | - 50 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation):: | - 25 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Drag Chain Inst):: | - 25 °C - + 60 °C |
| UL Cable Type:: | AWM: 20549 |
| Flammability Class (Cable Jacket):: | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2 |
| Cable Characteristics:: | Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibilty; Free of lacquer wetting disturbing substances |
| UL-File:: | E315587 |
| UL:: | UL 2238; cURus |
| RoHS Compliant:: | yes |
| Halogenfree:: | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
| Note Derating:: | Notice derating |
| Protection Degree / IP Rating Note:: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note:: | Do not connect or disconnect under load. |
| 3071: | RKMV 4-225/0,3 M |
| 50526: | RKMV 4-225/0,6 M |
| 70023: | RKMV 4-225/1 M |
| 11289: | RKMV 4-225/1,5 M |
| 28383: | RKMV 4-225/2 M |
| 18212: | RKMV 4-225/3 M |
| 83955: | RKMV 4-225/3,5 M |
| 18213: | RKMV 4-225/5 M |
| 18215: | RKMV 4-225/10 M |
| 44438: | RKMV 4-225/15 M |
| 60155: | RKMV 4-225/20 M |
| 45248: | RKMV 4-225/25 M |
| 1174: | RKMV 4-225/30 M |
| 1175: | RKMV 4-225/40 M |
Parámetros logísticos
| ECCN: | |
| País de origen: | CZ |
| EAN: | |
| Peso: | 0,05 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
