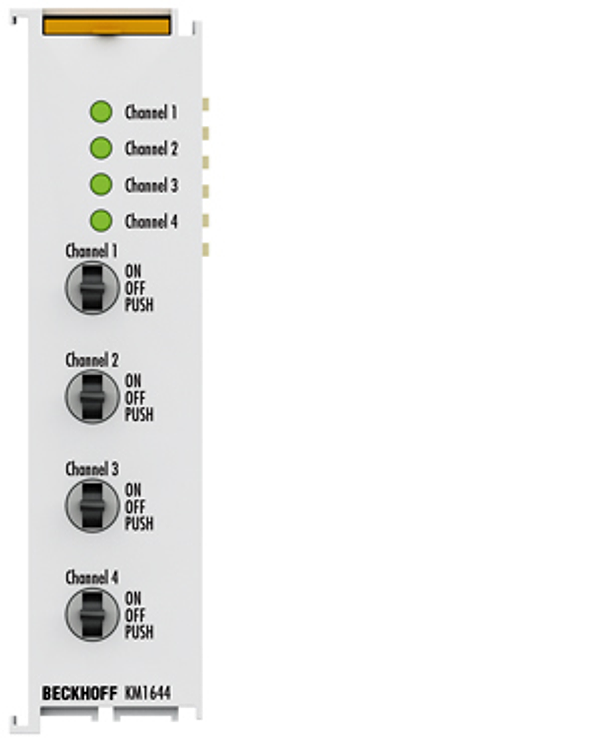

Derechos autor imagen: Beckhoff
Beckhoff KM1644
KM1644 | 4-channel manual operation
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The digital KM1644 input terminal is used for manual input directly in the process data. The four switches supply their status to the control system as digital bit information. The four LEDs indicate the four output bits from the process data and cannot be activated directly via the switches.
Parámetros técnicos
| Specification: | manual operation level |
| Number of inputs: | 4 |
| Number of outputs: | 4 |
| Nominal voltage: | – |
| Current consumption power contacts: | – (no power contacts) |
| Switch settings: | ON, OFF, PUSH |
| Bit width in the process image: | 4 inputs + 4 outputs |
| Special features: | manual/emergency operation |
| Weight: | approx. 65 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL |
