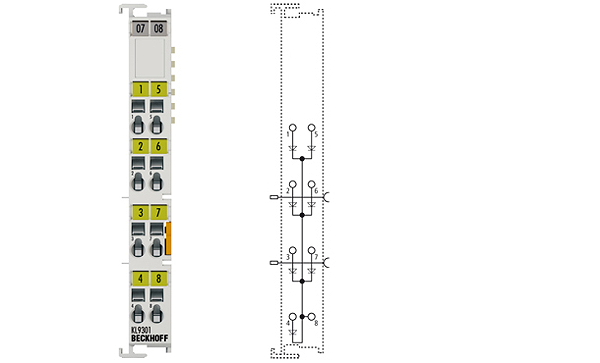

Beckhoff KL9301
KL9301 | Diode array terminal
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The KL9301 Bus Terminal contains a diode array consisting of a total of seven diodes with a common cathode. The diode array can be used as a free-wheeling or decoupling array. Through direct integration into the Bus Terminal assembly, the compact design of the Bus Terminal is retained for the whole application. Wiring is simplified significantly.
Parámetros técnicos
| Number of diodes: | 7 |
| Interconnection: | common cathode |
| Nominal cut-off voltage: | 1000 V (diodes) |
| Output current: | 1 A on each diode |
| Peak current: | 2.5 A (100 ms) |
| Voltage drop: | typ. 0.7 V |
| Current consumption K-bus: | – |
| Isolation voltage (channel/channel): | < 200 V |
| Electrical isolation: | 1500 V (K-bus/field) |
| Bit width in the process image: | – |
| Weight: | approx. 55 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals/markings: | CE, UL, ATEX |
| Ex marking: | II 3 G Ex nA IIC T4 Gc |
