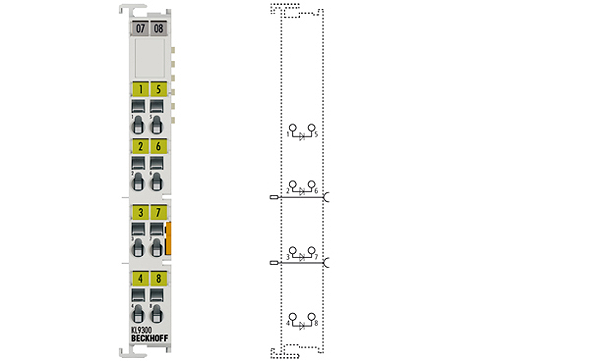

Beckhoff KL9300
KL9300 | Diode array terminal
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The KL9300 Bus Terminal contains four potential-free diodes that can be used as free-wheeling or decoupling diodes. Through direct integration into the Bus Terminal assembly, the compact design of the Bus Terminal is retained for the whole application. Wiring is simplified significantly.
Parámetros técnicos
| Number of diodes: | 4 |
| Interconnection: | potential-free |
| Nominal cut-off voltage: | 1000 V (diodes) |
| Output current: | 1 A on each diode |
| Peak current: | 2.5 A (100 ms) |
| Voltage drop: | typ. 0.7 V |
| Current consumption K-bus: | – |
| Isolation voltage (channel/channel): | < 200 V |
| Electrical isolation: | 1500 V (K-bus/field) |
| Bit width in the process image: | – |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals/markings: | CE, UL, ATEX |
| Ex marking: | II 3 G Ex nA IIC T4 Gc |
Parámetros logísticos
| ECCN: | |
| País de origen: | |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
