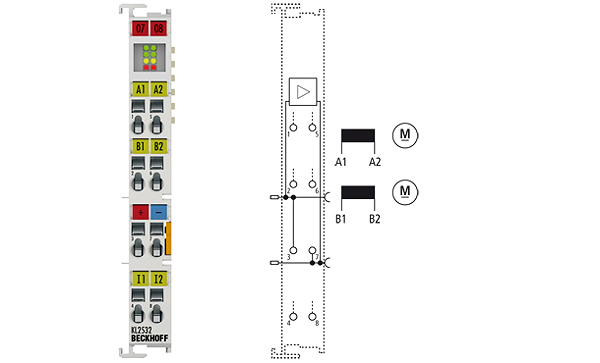

Beckhoff KL2532
KL2532 | 2-channel DC motor output stage 24 V DC, 1 A
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The KL2532 Bus Terminal enables direct operation of two DC motors. It is galvanically isolated from the K-bus. The speed is preset by a 16 bit value from the automation unit. The output stage is protected against overload and short-circuit. The Bus Terminal contains two channels that indicate their signal state by means of light emitting diodes. The LEDs enable quick local diagnosis.
Parámetros técnicos
| Technology: | compact Drive Technology |
| Load type: | DC brush motor, inductive |
| Number of channels: | 2 |
| Number of outputs: | 1 x DC motor per channel |
| Number of inputs: | 1 x end position per channel |
| Connection technology: | direct motor connection |
| Output current: | max. 1 A per channel |
| Max. output current: | 2 x 1 A (short-circuit proof, thermal-overload proof for both channels together) |
| Resolution: | max. 10 bit current, 16 bit speed |
| Encoder input signal: | – |
| Pulse frequency: | – |
| Current consumption power contacts: | typ. 30 mA + load |
| Current consumption K-bus: | typ. 50 mA |
| Bit width in the process image: | 48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Weight: | approx. 55 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/see documentation |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals/markings: | CE, UL |
