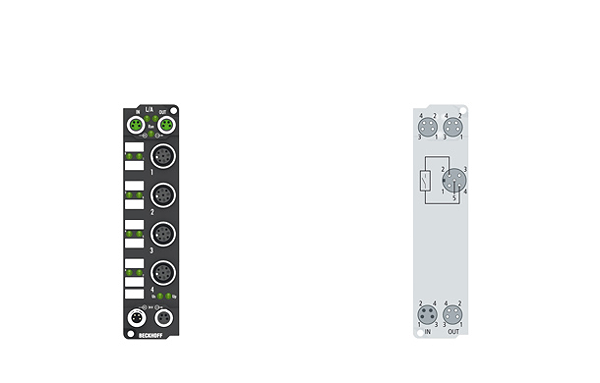

Beckhoff EP2624-0002
EP2624-0002 | 4-channel relay output 25 V AC/30 V DC
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The EP2624 EtherCAT Box has four relays each of which has a single contact. The relay contact is suitable for use at up to 25 V AC or 30 V DC. The EtherCAT Box indicates its signal state by means of light emitting diodes. The EP2624 has potential-free contacts. The power supply is looped through.
Parámetros técnicos
| Number of outputs: | 4 x make contacts |
| Rated load voltage: | 25 V AC/30 V DC |
| Output connections: | M12, screw type |
| Ohmic switching current: | 0.5 A AC/2 A DC |
| Minimum permitted load: | 10 µA at 10 mV DC |
| Protocol: | EtherCAT |
| Bus interface: | 2 x M8 socket, shielded, screw type |
| Load type: | ohmic, inductive, lamp load |
| Nominal output voltage: | 24 V DC (-15 %/+20 %) |
| Distributed clocks: | – |
| Current consumption from US: | 120 mA |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Bit width in the process image: | 4 outputs |
| Operating cycles mech. (min.): | 1 x 108 |
| Operating cycles electr. (min.): | 2 x 105 (1 A/30 V DC) |
| Electrical isolation: | 500 V |
| Special features: | potential-free switching |
| Weight: | approx. 165 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/Markings: | CE, UL, ATEX |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
