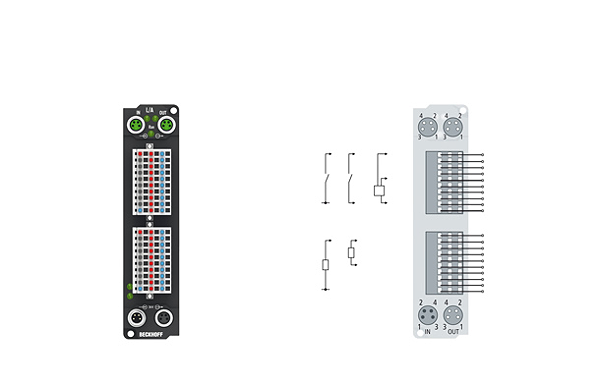

Beckhoff EP2316-0003
EP2316-0003 | 8 x digital input + 8 x digital output 24 V DC, I, max. 0.5 A
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The EP2316 EtherCAT Box combines eight digital inputs and eight digital outputs in one device. A filter constant of 10 µs is available for the inputs. The outputs handle load currents of up to 0.5 A, are short-circuit proof and protected against inverse polarity. Signal state and status are indicated by means of light emitting diodes. For the signal connection connectors with a spring-loaded system are used, optionally available with 1 or 3 pins. The module is supplied without connectors.
Parámetros técnicos
| Specification: | EN 61131-2, type 1/3 |
| Number of channels: | 8 inputs + 8 outputs |
| Input/output connections: | connector with spring-loaded system |
| Protocol: | EtherCAT |
| Bus interface: | 2 x M8 socket, shielded, screw type |
| Input filter: | 10 µs |
| “0” signal voltage: | -3…+5 V |
| “1” signal voltage: | 11…30 V, 6 mA input current (EN 61131-2, type 3) |
| Sensor supply: | from control voltage, max. 0.5 A, short-circuit proof in total |
| Load type: | ohmic, inductive, lamp load |
| Rated load voltage: | 24 V DC (-15 %/+20 %) |
| Max. output current: | 0.5 A per channel, individually short-circuit proof |
| Short-circuit current: | typ. 1.5 A |
| Auxiliary power current: | typ. 20 mA + load |
| Current consumption from US: | 120 mA |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Bit width in the process image: | 8 inputs + 8 outputs (8 inputs diagnostics) |
| Electrical isolation: | 500 V |
| Special features: | IP 20, ideal for e.g. operating desks |
| Weight: | approx. 165 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL |
