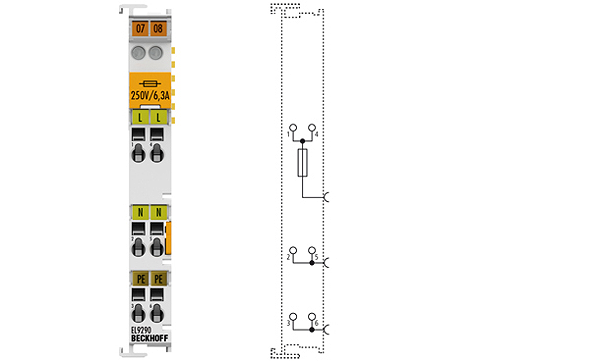

Beckhoff EL9290
EL9290 | Potential supply terminal, for voltages up to 230 V AC, with fuse
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The EL9290 power feed terminal makes it possible to set up various potential groups with any desired voltages up to 230 V AC.
Parámetros técnicos
| Technology: | potential supply terminal with fuse |
| Current load: | ≤ 10 A |
| Power LED: | – |
| Defect LED: | – |
| Renewed infeed: | yes |
| Current consumption E-bus: | – |
| Nominal voltage: | arbitrary up to 230 V AC |
| Integrated fine-wire fuse: | …6.3 A |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Diagnostics in the process image: | – |
| Reported to E-bus: | – |
| PE contact: | yes |
| Shield connection: | – |
| Connection facility to additional power contact: | 1 |
| Bit width in the process image: | 0 |
| Electrical connection to DIN rail: | – |
| Housing width: | 12 mm |
| Side by side mounting on EtherCAT Terminals with power contact: | yes |
| Side by side mounting on EtherCAT Terminals without power contact: | yes |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Approvals/markings: | CE |
