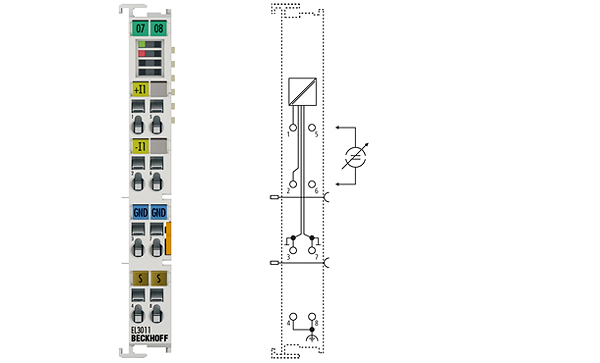

EL3011 | 1-channel analog input terminals 0…20 mA, differential input, 12 bit
Descripción
The EL3011 analog input terminal processes signals in the range between 0 and 20 mA. The current is digitised to a resolution of 12 bits and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the EtherCAT Terminal have differential inputs and possess a common, internal ground potential. The EL3011 is the single-channel version and is characterised by its fine granularity and electrical isolation. Overload condition is detected, and the terminal status is relayed to the controller via the E-bus. The EtherCAT Terminal indicates its signal state by means of light emitting diodes. The error LEDs indicate an overload condition.
Parámetros técnicos
| Number of inputs: | 1 (differential) |
| Power supply: | via the E-bus |
| Technology: | differential input |
| Signal current: | 0…20 mA |
| Distributed clocks: | – |
| Internal resistance: | typ. 85 Ω + diode voltage |
| Input filter limit frequency: | 1 kHz |
| Common-mode voltage UCM: | max. 10 V |
| Conversion time: | 0.625 ms default setting, configurable, multiplex |
| Resolution: | 12 bit (16 bit presentation incl. sign) |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Surge voltage resistance: | 35 V DC |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 130 mA |
| Bit width in the process image: | inputs: 4 byte |
| Special features: | activatable FIR/IIR filters, limit value monitoring |
| Weight: | approx. 55 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals/markings: | CE, UL, ATEX |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
