ABB 2CPX033020R9999

KA4029

KA4029 Transformer Meterboerd H5/W2

Descripción

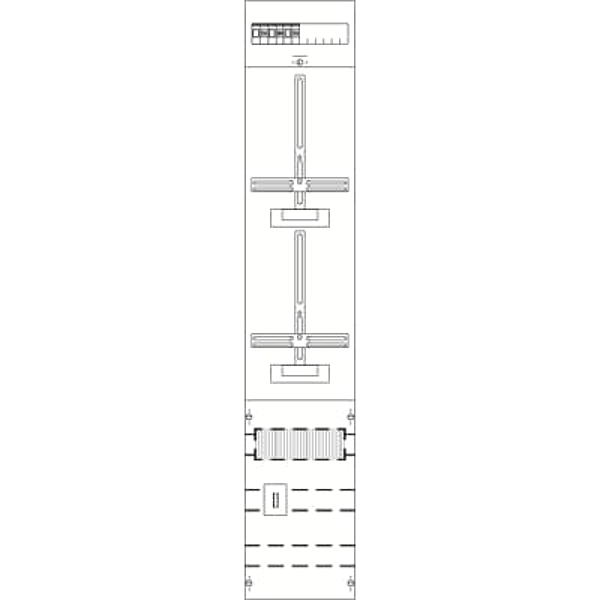

Meter panel, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, dimensions in mm (H x W x D): 1350 x 250 x 160, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, TAE terminal box 1, Test terminals are included according wish DSO, Zwischenklemmbereich nach TAB A.5 im Zugang verdrahtet, Note: metering transformer sets to be installed in seperate housing, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
