Produkt
Telco
5906
SMR 3206 AP T3
Anfrage senden

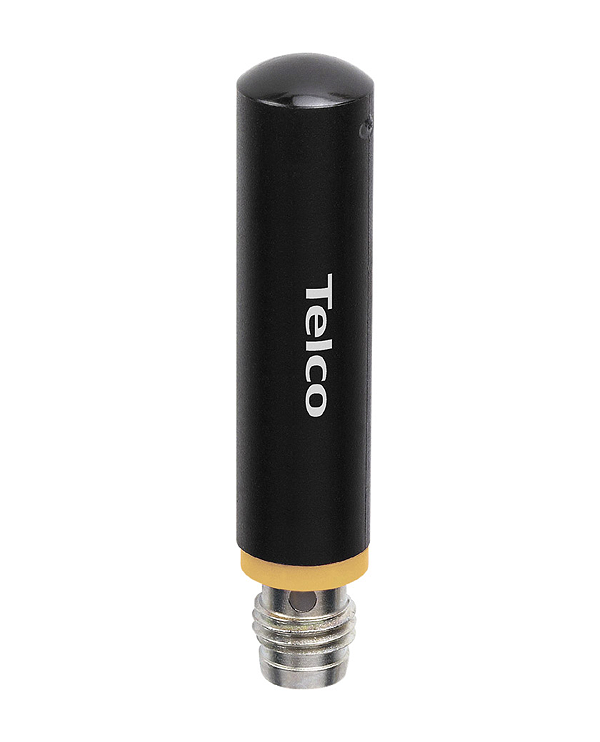

Urheberrecht Bild: Telco
Telco 5906
SMR 3206 AP T3
Auf Anfrage. Bitte senden Sie uns eine E-Mail, um den Preis und die Verfügbarkeit anzufragen.
"ucnguBrctvdgcxgt0eqo"
Beschreibung
Technische Daten
| Operation Mode: | Thru Beam |
| Function: | Transmitter |
| Supply Voltage: | 10 - 30 V dc |
| Light Source: | Infrared (880 nm) |
| Control Feature: | Adjustable range and test input |
| Sensing Range: | 6 m |
| Housing: | Ø10 |
| Housing Material: | Plastic |
| Connection: | 3 pin, M8 plug |
| Operation Mode: | Thru Beam |
| Function: | Receiver |
| Supply Voltage: | 10 - 30 V dc |
| Sensing Range: | 6 m |
| Output: | PNP |
| Output Status: | N.C. |
| Housing: | Ø10 |
| Housing Material: | Plastic |
| Connection: | 3 pin, M8 plug |
| Supply Voltage: | 10 - 30 V dc |
| Voltage Ripple: | 15 % |
| Reverse Polarity Protected: | Yes |
| Short Circuit Protected: | Yes |
| Current Consumption: | Max. 8 mA |
| Max. Output Load: | 100 mA |
| Max. Residual Voltage: | 2,5 V |
| Max. Operation Frequency: | > 90 Hz |
| Response Time ton / toff: | < 4 ms / < 6 ms |
| Output Indicator: | Yellow LED |
| Hysteresis: | Approx. 25 % |
| Opening Angle: | +/- 7° |
| Housing Material, Front Lens: | Polycarbonate |
| Housing Material, Sensor Housing: | Polycarbonate |
| Cable: | 3 x 0,14 mm² |
| Cable Sleeve: | PVC Ø 3,4 mm |
| Vibration: | 10 - 55 Hz, 0,5 mm |
| Shock: | 30 g |
| Operation Temperature: | -20 to +50 °C |
| Storage Temperature: | -40 to +80 °C |
| Sealing Class: | IP 67 |
| Light Immunity 5˚: | 35 000 lux |
Logistische Daten
| ECCN: | |
| Ursprungsland: | |
| EAN: | |
| Gewicht: | 0,00 kg |
| Länge: | 0,00 m |
| Breite: | 0,00 m |
| Höhe: | 0,00 m |
