Werma 69000055
VarioSIGN 2S BM Contin. tone 24VDC MC
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis

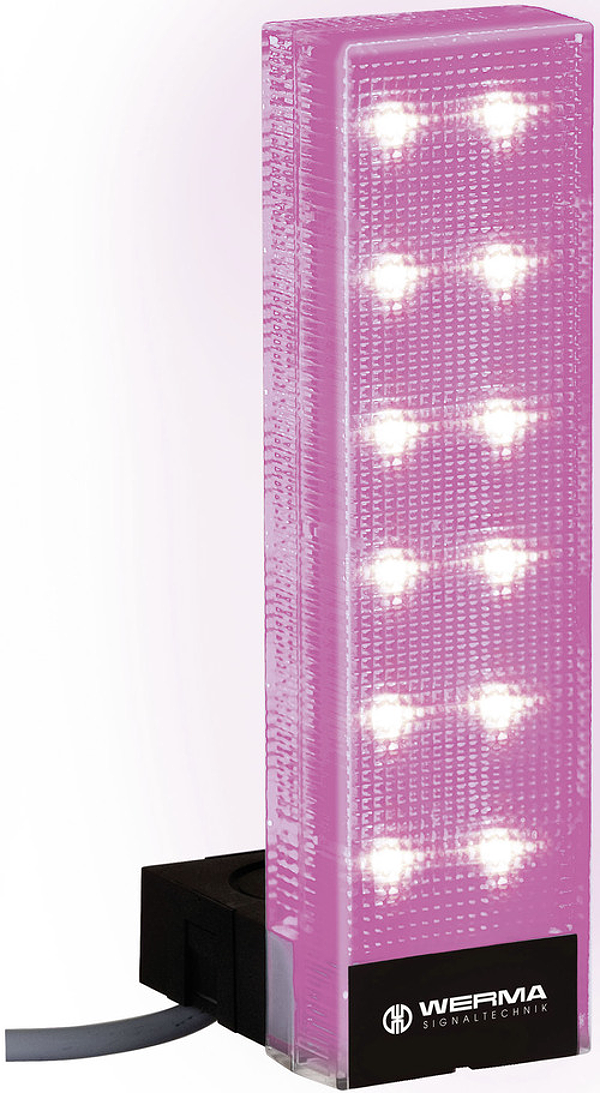

LED signal tower with permanent light and additional light effects. 7 colours adjustable by DIP switch. Complete illumination of the lens in one colour (can be triggered, externally). 2 sided illumination. With integrated, high output buzzer
Parametry techniczne
| Length: | 90 mm |
| Width: | 62 mm |
| Height: | 220 mm |
| Materials: | PC PC/ABS |
| Dome colour: | Clear |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Membrane grommet |
| Cable entry minimum: | d = 1 mm |
| Cable entry maximum: | d = 11 mm |
| Type of fixing: | Base mounting |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 313 g |
| Product weight: | 256 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 320 mA |
| Rated inrush current: | 350 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 2 |
| Light source: | LED |
| Light colour: | MC 7 colours |
| Optical signal image: | Blink EVS Permanent |
| Blink frequency (Hz): | 1 Hz |
| Service life optical: | 50,000 h maximum |
| Volume/dB(max) at 1m distance: | 85,0 dB (A) |
| Acoustic signal image: | Continuous tone |
| Audio frequency: | 2400 Hz |
| Acoustic service life: | 5,000 h minimum |
