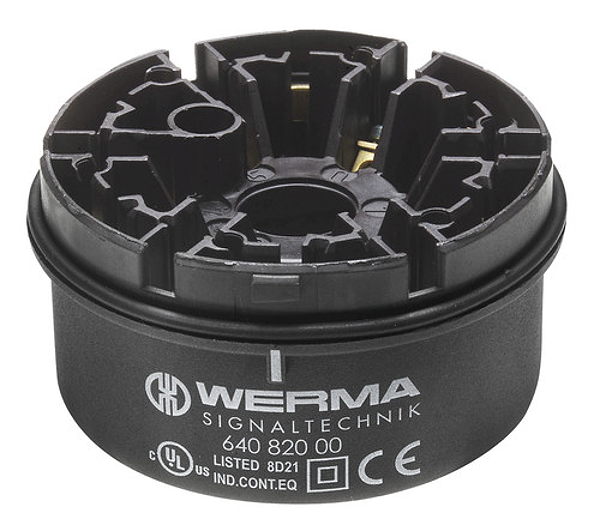

Werma 64082000
Terminal element screwable BWM
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
The right solution for any type of mounting due to a wide range of, accessories. Bayonet fixture ensures simple mounting and removal of signal elements
Parametry techniczne
| Height: | 43 mm |
| Diameter: | 70 mm |
| Materials: | PA-GF PC |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Through hole |
| Cable entry maximum: | d = 11 mm |
| Type of fixing: | Base mounting Wall mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 102 g |
| Product weight: | 90 g |
| Operating voltage: | 12-230V |
| Operating voltage type: | AC/DC |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
