Produkt
Weidmueller
9918950000
VT
Poproś o ofertę

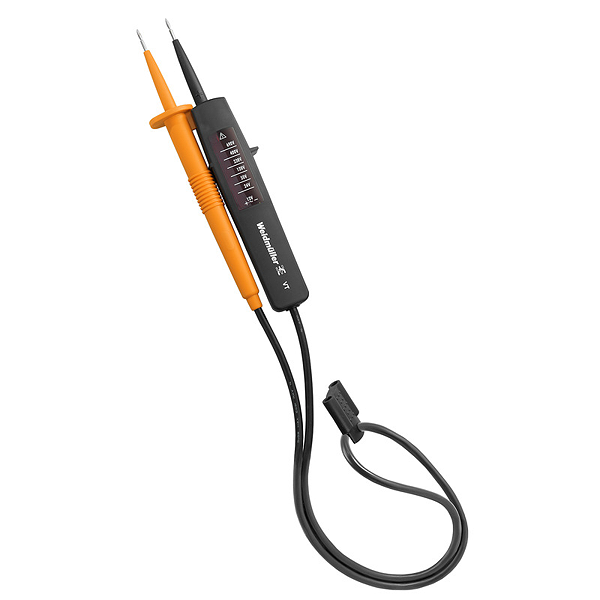

Prawa autorskie do obrazu: Weidmueller
Weidmueller 9918950000
VT
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | VT |
| Order No.: | 9918950000 |
| Version: | 2-pole voltage tester, No |
| GTIN (EAN): | 4032248405831 |
| Qty.: | 1 pc(s). |
| Width: | 190 mm |
| Width (inches): | 7.48 inch |
| Height: | 21 mm |
| Height (inches): | 0.827 inch |
| Depth: | 55 mm |
| Depth (inches): | 2.165 inch |
| Weight: | 115 g |
| Net weight: | 115 g |
| REACH SVHC: | Lead 7439-92-1 |
| AC voltage display: | 12, 50, 120, 230, 400, 690 V |
| AC voltage measuring range: | 12-690 V |
| Continuity test: | No |
| DC voltage display: | 12, 50, 120, 230, 400, 690 V |
| DC voltage measuring range: | 1000 V |
| Display: | LED |
| Frequency range, max.: | 65 Hz |
| Frequency range, min.: | 0 Hz |
| Insulation test: | 5 kV |
| Measuring range category: | CAT III 600 V, CAT IV 300 V |
| Peak voltage resistance: | 5 kV |
| Protection degree: | IP64 |
| Rated voltage, max.: | 690 V AC/DC |
| Rated voltage, min.: | 12 V AC/DC |
| Tested and approved according to: | EN/IEC 61010, EN 61243-3 2010 |
| Working temperature, max.: | 55 °C |
| Working temperature, min.: | -15 °C |
| ETIM 6.0: | EC000494 |
| ETIM 7.0: | EC000494 |
| eClass 9.0: | 27-20-03-08 |
| eClass 9.1: | 27-20-03-08 |
| eClass 10.0: | 27-20-03-08 |
| UNSPSC: | 41-11-36-37 |
| ROHS: | Conform |
| Type: | VT |
| Order No.: | 9918950000 |
| Version: | 2-pole voltage tester, No |
| GTIN (EAN): | 4032248405831 |
| Qty.: | 1 pc(s). |
| Width: | 190 mm |
| Width (inches): | 7.48 inch |
| Height: | 21 mm |
| Height (inches): | 0.827 inch |
| Depth: | 55 mm |
| Depth (inches): | 2.165 inch |
| Weight: | 115 g |
| Net weight: | 115 g |
| REACH SVHC: | Lead 7439-92-1 |
| AC voltage display: | 12, 50, 120, 230, 400, 690 V |
| AC voltage measuring range: | 12-690 V |
| Continuity test: | No |
| DC voltage display: | 12, 50, 120, 230, 400, 690 V |
| DC voltage measuring range: | 1000 V |
| Display: | LED |
| Frequency range, max.: | 65 Hz |
| Frequency range, min.: | 0 Hz |
| Insulation test: | 5 kV |
| Measuring range category: | CAT III 600 V, CAT IV 300 V |
| Peak voltage resistance: | 5 kV |
| Protection degree: | IP64 |
| Rated voltage, max.: | 690 V AC/DC |
| Rated voltage, min.: | 12 V AC/DC |
| Tested and approved according to: | EN/IEC 61010, EN 61243-3 2010 |
| Working temperature, max.: | 55 °C |
| Working temperature, min.: | -15 °C |
| ETIM 6.0: | EC000494 |
| ETIM 7.0: | EC000494 |
| eClass 9.0: | 27-20-03-08 |
| eClass 9.1: | 27-20-03-08 |
| eClass 10.0: | 27-20-03-08 |
| UNSPSC: | 41-11-36-37 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,192 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
