Produkt
Weidmueller
9918050000
STRIPPER ROUND TOP
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

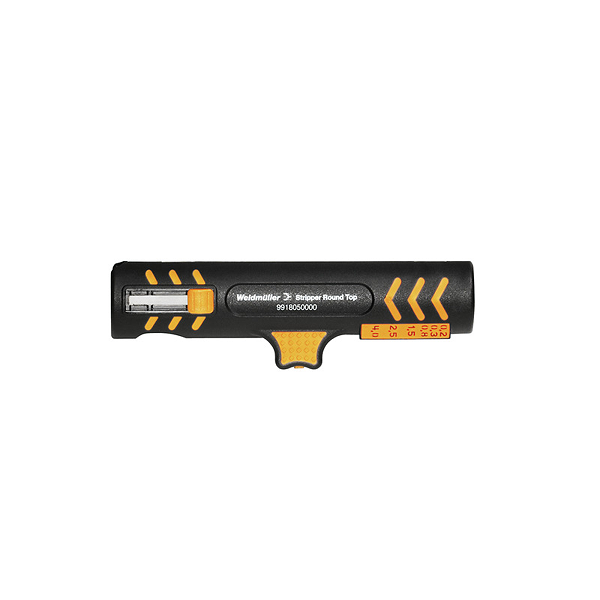

Weidmueller 9918050000
STRIPPER ROUND TOP
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | STRIPPER ROUND TOP |
| Order No.: | 9918050000 |
| Version: | Sheathing strippers, Flexible and solid conductors with PVC insulation, 4mm² |
| GTIN (EAN): | 4032248359165 |
| Qty.: | 1 pc(s). |
| Width: | 125 mm |
| Width (inches): | 4.921 inch |
| Height: | 35 mm |
| Height (inches): | 1.378 inch |
| Depth: | 25 mm |
| Depth (inches): | 0.984 inch |
| Weight: | 50 g |
| Net weight: | 46.2 g |
| REACH SVHC: | Lead 7439-92-1 |
| Cable type: | Flexible and solid conductors with PVC insulation |
| Conductor cross-section, max.: | 4 mm² |
| Conductor cross-section, min.: | 0.2 mm² |
| Max. conductor diameter: | 13 mm |
| Min. conductor diameter: | 8 mm |
| Stripping range, min.: | 0.25 mm² |
| ETIM 6.0: | EC000163 |
| ETIM 7.0: | EC000163 |
| eClass 9.0: | 21-04-90-90 |
| eClass 9.1: | 21-04-37-06 |
| eClass 10.0: | 21-04-90-90 |
| UNSPSC: | 27-11-15-03 |
| Type: | STRIPPER ROUND TOP |
| Order No.: | 9918050000 |
| Version: | Sheathing strippers, Flexible and solid conductors with PVC insulation, 4mm² |
| GTIN (EAN): | 4032248359165 |
| Qty.: | 1 pc(s). |
| Width: | 125 mm |
| Width (inches): | 4.921 inch |
| Height: | 35 mm |
| Height (inches): | 1.378 inch |
| Depth: | 25 mm |
| Depth (inches): | 0.984 inch |
| Weight: | 50 g |
| Net weight: | 46.2 g |
| REACH SVHC: | Lead 7439-92-1 |
| Cable type: | Flexible and solid conductors with PVC insulation |
| Conductor cross-section, max.: | 4 mm² |
| Conductor cross-section, min.: | 0.2 mm² |
| Max. conductor diameter: | 13 mm |
| Min. conductor diameter: | 8 mm |
| Stripping range, min.: | 0.25 mm² |
| ETIM 6.0: | EC000163 |
| ETIM 7.0: | EC000163 |
| eClass 9.0: | 21-04-90-90 |
| eClass 9.1: | 21-04-37-06 |
| eClass 10.0: | 21-04-90-90 |
| UNSPSC: | 27-11-15-03 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,06 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
