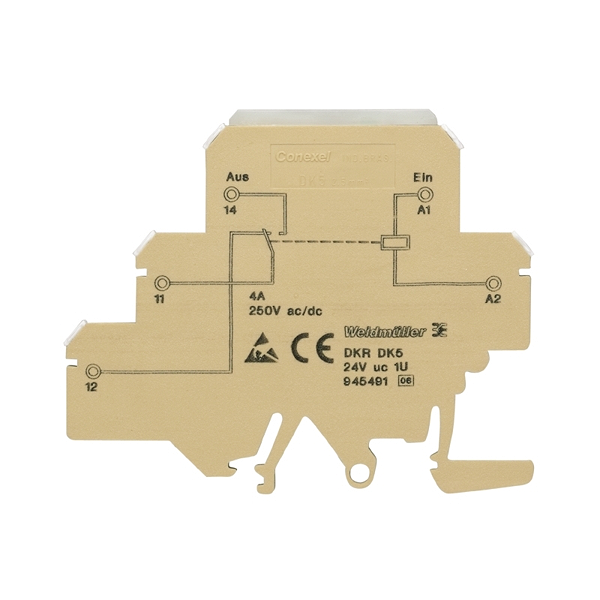

Weidmueller 9454910000
DKR DK5 24VUC 1U
1122780000
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2019-04-15 |
| Type: | DKR DK5 24VUC 1U |
| Order No.: | 9454910000 |
| Version: | DK-SERIES, Relay module, Number of contacts: 1, CO contact AgSnO2, Rated control voltage: 24 V UC ±20 %, Continuous current: 6 A, Screw connection |
| GTIN (EAN): | 4032248181827 |
| Qty.: | 10 pc(s). |
| Width: | 6 mm |
| Width (inches): | 0.236 inch |
| Height: | 77 mm |
| Height (inches): | 3.031 inch |
| Depth: | 77 mm |
| Depth (inches): | 3.031 inch |
| Net weight: | 25 g |
| Humidity: | 40 °C / 93 % rel. humidity, no condensation |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...60 °C |
| Storage temperature: | -40 °C...60 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 24 V UC ± 20 % |
| Rated current AC: | 9 mA |
| Rated current DC: | 7 mA |
| Power rating: | 220 mVA/ 180 mW |
| Status indicator: | Green LED |
| Protective circuit: | Free-wheeling diode |
| Max. switching voltage, AC: | 250 V |
| Continuous current: | 6 A |
| Inrush current: | 6 A |
| AC switching capacity (resistive), max.: | 1500 VA |
| DC switching capacity (resistive), max.: | 140 W |
| Switch-on delay: | 6 ms |
| Switch-off delay: | 15 ms AC / 8 ms DC |
| Min. switching power: | 1 mA @ 24 V, 10 mA @ 10 V, 100 mA @ 5 V |
| Max. switching frequency at rated load: | 0.1 Hz |
| Contact type: | 1 CO contact (AgSnO2) |
| Rail: | TS 32, TS 35 |
| Test button: | No |
| Mechanical switch position indicator: | No |
| Open sides: | right |
| Colour: | beige |
| Rated voltage: | 300 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Protection degree: | IP20 |
| Creepage and clearance distance input – output: | ≥ 8 mm |
| Impulse withstand voltage: | 4 kV |
| Standards: | DIN EN 50178 |
| Wire connection method: | Screw connection |
| Clamping range, rated connection: | 4 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 4 mm² |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section AWG, max.: | AWG 12 |
| ETIM 6.0: | EC001437 |
| ETIM 7.0: | EC001437 |
| eClass 9.0: | 27-37-16-01 |
| eClass 9.1: | 27-37-16-01 |
| eClass 10.0: | 27-37-16-01 |
| UNSPSC: | 30-21-19-17 |
| ROHS: | Conform |
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2019-04-15 |
| Type: | DKR DK5 24VUC 1U |
| Order No.: | 9454910000 |
| Version: | DK-SERIES, Relay module, Number of contacts: 1, CO contact AgSnO2, Rated control voltage: 24 V UC ±20 %, Continuous current: 6 A, Screw connection |
| GTIN (EAN): | 4032248181827 |
| Qty.: | 10 pc(s). |
| Width: | 6 mm |
| Width (inches): | 0.236 inch |
| Height: | 77 mm |
| Height (inches): | 3.031 inch |
| Depth: | 77 mm |
| Depth (inches): | 3.031 inch |
| Net weight: | 25 g |
| Humidity: | 40 °C / 93 % rel. humidity, no condensation |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...60 °C |
| Storage temperature: | -40 °C...60 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 24 V UC ± 20 % |
| Rated current AC: | 9 mA |
| Rated current DC: | 7 mA |
| Power rating: | 220 mVA/ 180 mW |
| Status indicator: | Green LED |
| Protective circuit: | Free-wheeling diode |
| Max. switching voltage, AC: | 250 V |
| Continuous current: | 6 A |
| Inrush current: | 6 A |
| AC switching capacity (resistive), max.: | 1500 VA |
| DC switching capacity (resistive), max.: | 140 W |
| Switch-on delay: | 6 ms |
| Switch-off delay: | 15 ms AC / 8 ms DC |
| Min. switching power: | 1 mA @ 24 V, 10 mA @ 10 V, 100 mA @ 5 V |
| Max. switching frequency at rated load: | 0.1 Hz |
| Contact type: | 1 CO contact (AgSnO2) |
| Rail: | TS 32, TS 35 |
| Test button: | No |
| Mechanical switch position indicator: | No |
| Open sides: | right |
| Colour: | beige |
| Rated voltage: | 300 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Protection degree: | IP20 |
| Creepage and clearance distance input – output: | ≥ 8 mm |
| Impulse withstand voltage: | 4 kV |
| Standards: | DIN EN 50178 |
| Wire connection method: | Screw connection |
| Clamping range, rated connection: | 4 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 4 mm² |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section AWG, max.: | AWG 12 |
| ETIM 6.0: | EC001437 |
| ETIM 7.0: | EC001437 |
| eClass 9.0: | 27-37-16-01 |
| eClass 9.1: | 27-37-16-01 |
| eClass 10.0: | 27-37-16-01 |
| UNSPSC: | 30-21-19-17 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | DE |
| EAN: | 4032248181827 |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
