Produkt
Weidmueller
9040450000
CRIMPER 6 I
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

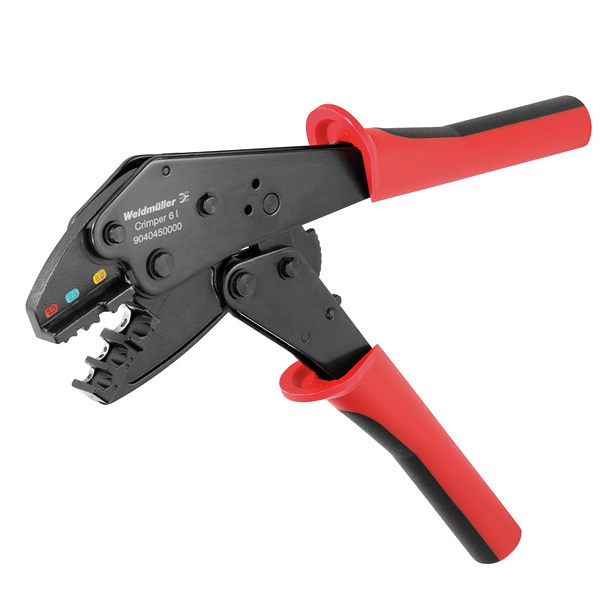

Weidmueller 9040450000
CRIMPER 6 I
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | CRIMPER 6 I |
| Order No.: | 9040450000 |
| Version: | Tools, Crimping tool for contacts, 0.5mm², 6mm² |
| GTIN (EAN): | 4008190461515 |
| Qty.: | 1 pc(s). |
| Width: | 250 mm |
| Width (inches): | 9.842 inch |
| Weight: | 596 g |
| Net weight: | 504.57 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | Mechanical, without interchangeable inserts |
| Type of contact: | Insulated connector |
| Crimping range, min.: | 0.5 mm² |
| Crimping range, max.: | 6 mm² |
| Crimping profile 1, min.: | 0.5 mm² |
| Crimping profile 1, max.: | 1.5 mm² |
| Crimping profile 2, min.: | 1.1 mm² |
| Crimping profile 2, max.: | 2.5 mm² |
| Crimping profile 3, min.: | 2.6 mm² |
| Crimping profile 3, max.: | 6 mm² |
| ETIM 6.0: | EC000168 |
| ETIM 7.0: | EC000168 |
| eClass 9.0: | 21-04-38-11 |
| eClass 9.1: | 21-04-38-11 |
| eClass 10.0: | 21-04-38-11 |
| UNSPSC: | 31-16-31-02 |
| Type: | CRIMPER 6 I |
| Order No.: | 9040450000 |
| Version: | Tools, Crimping tool for contacts, 0.5mm², 6mm² |
| GTIN (EAN): | 4008190461515 |
| Qty.: | 1 pc(s). |
| Width: | 250 mm |
| Width (inches): | 9.842 inch |
| Weight: | 596 g |
| Net weight: | 504.57 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | Mechanical, without interchangeable inserts |
| Type of contact: | Insulated connector |
| Crimping range, min.: | 0.5 mm² |
| Crimping range, max.: | 6 mm² |
| Crimping profile 1, min.: | 0.5 mm² |
| Crimping profile 1, max.: | 1.5 mm² |
| Crimping profile 2, min.: | 1.1 mm² |
| Crimping profile 2, max.: | 2.5 mm² |
| Crimping profile 3, min.: | 2.6 mm² |
| Crimping profile 3, max.: | 6 mm² |
| ETIM 6.0: | EC000168 |
| ETIM 7.0: | EC000168 |
| eClass 9.0: | 21-04-38-11 |
| eClass 9.1: | 21-04-38-11 |
| eClass 10.0: | 21-04-38-11 |
| UNSPSC: | 31-16-31-02 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,555 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
